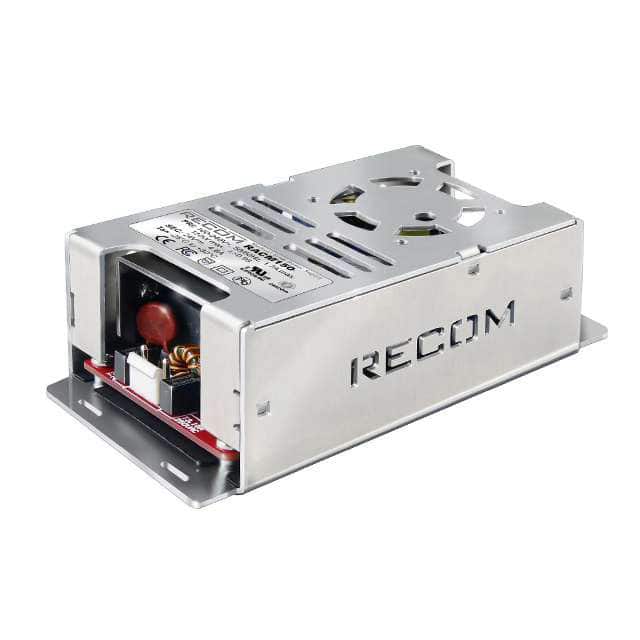

The RECOM Power RACM150-15S is a 150 Watt enclosed AC/DC power supply designed for medical applications, offering a 15V output voltage. It operates with a wide input voltage range of 85-264VAC and achieves a typical efficiency of 92%.
Key electrical specifications include a 9A output current, 4kV isolation voltage, and active power factor correction. The converter is designed for chassis mounting and operates within a temperature range of -25°C to +80°C with derating. It also features low leakage current (<100µA) and meets various safety certifications including IEC/EN60601 and ANSI/AAMI ES60601.
The physical dimensions are 116.8mm in length, 62.0mm in width, and 49.2mm in height. The RACM150-15S series is noted as 'NOT RECOMMENDED FOR NEW DESIGNS' with a last time buy date of August 1st, 2022.
The output voltage is 15 VDC and the output current is 9 A.
The input voltage range is 85-264 VAC.
The operating temperature range is -25°C to 80°C with derating.
It is approved to IEC/EN60601, ANSI/AAMI ES60601, EN55011, CISPR11, and FCC Part 15 standards with a 2 MOPP rating.
The typical efficiency is 92% at 115/230VAC full load.
The package is enclosed and the mounting style is chassis mount.
The isolation voltage is 4 kVAC.
