| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

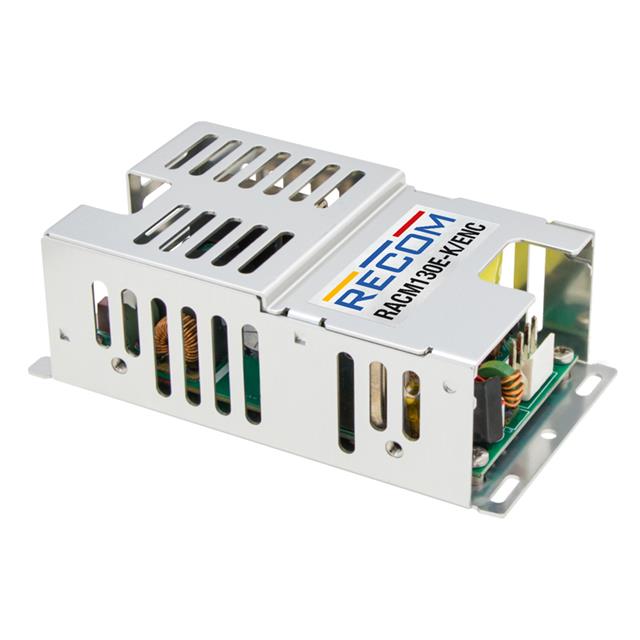

The RECOM Power RACM130E-48SK/ENC is a 130W enclosed AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input voltage range of 85-264 VAC or 120-370 VDC and provides a stable 48V output at 2.71A.
This converter boasts an efficiency of 88% and features a baseplate, DC input capability, and Power Factor Correction (PFC). Its operating temperature range is -40°C to 90°C with derating. The unit is designed for chassis mounting and has dimensions of 118.3mm x 62.7mm x 38.7mm.
Key specifications include 4kV voltage isolation and approvals from CE and EAC agencies. The RACM130E-48SK/ENC is part of the RACM130E-K series.
85 ~ 264 VAC and 120 ~ 370 VDC.
48V at 2.71A.
130W.
88%.
4 kV.
-40°C to 90°C with derating.
Chassis Mount.
