| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Operating Temperature Range | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

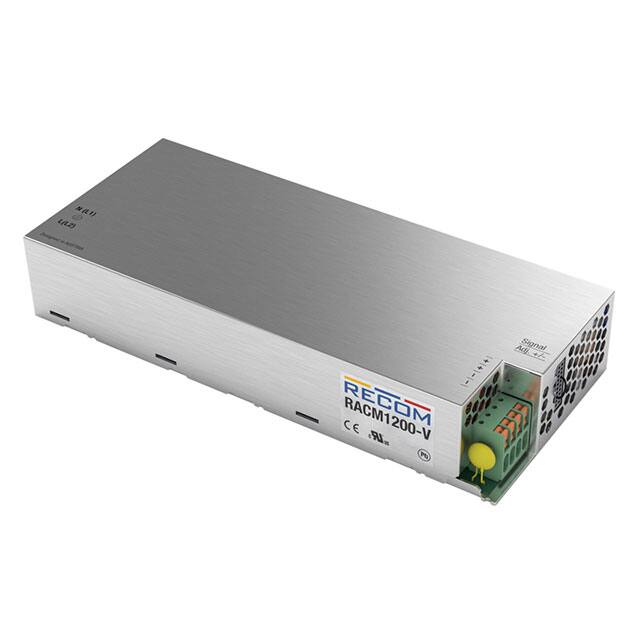

The RECOM Power RACM1200-24SAV/ENC is a high-power enclosed AC/DC converter designed for demanding applications. It delivers up to 1200W of output power with a nominal output voltage of 24VDC, adjustable within a 24-28VDC range, and a maximum output current of 50A. The unit operates from a wide input voltage range of 80-264 VAC.
This converter boasts a fan-less design for up to 1000W continuous power and can provide 1200W boost power for short durations. It offers high efficiency, exceeding 90% from 15% load and reaching up to 95% peak efficiency. The operating temperature range is -40°C to 80°C with derating. Key features include adjustable output, baseplate cooling, remote on/off, remote sense, a standby output, and universal input.
Designed for industrial, ITE, and medical applications, the RACM1200-24SAV/ENC meets various safety standards including IEC/EN60601-1, IEC/EN61010-1, and IEC/EN62368-1. It also complies with Class A immunity and Class B emissions standards. The unit is enclosed and designed for chassis mounting, with dimensions of 228.0mm x 96.2mm x 40.0mm.
The nominal output voltage is 24 VDC, adjustable within a range of 24-28 VDC.
The maximum output current is 50 A.
The input voltage range is 80-264 VAC.
The operating temperature range is -40°C to 80°C, with derating.
The dimensions are 228.0mm in length, 96.2mm in width, and 40.0mm in height.
It uses chassis mount.
The peak efficiency reaches up to 95%.
