| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

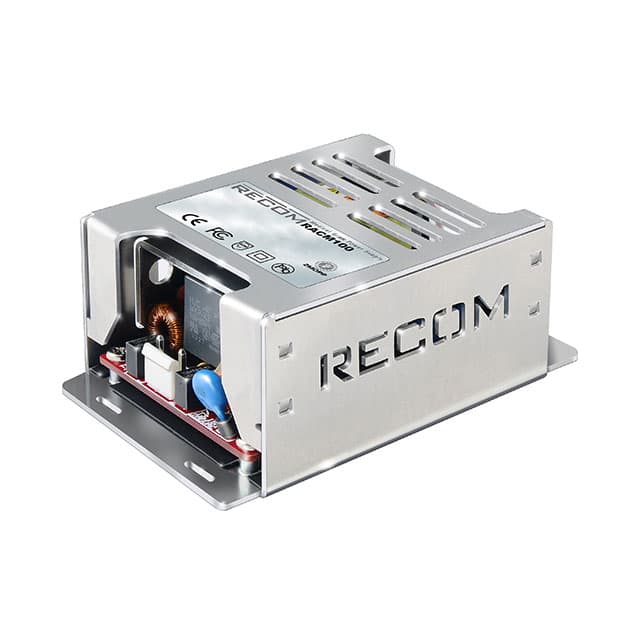

The RECOM Power RACM100-24S is a compact 100W AC/DC power supply designed for medical applications, featuring 2xMOPP 3rd Ed. safety approval. It operates with a universal input voltage range of 85-264VAC and provides a regulated 24VDC output at 4.17A.
This converter boasts high efficiency of 92% and includes active power factor correction (PFC). It offers 4kVAC isolation and a low leakage current of less than 75µA, making it suitable for BF rated outputs. The operating temperature range is -25°C to 85°C with derating, and it can operate at altitudes up to 5000m.
The RACM100-24S is certified to medical safety standards IEC/ES/EN-60601-1 3rd Edition and ANSI/AAMI ES60601. It also features a built-in Class B EMI filter and comes with a five-year warranty. The unit is designed for chassis mounting and has dimensions of 91.4mm x 62.0mm x 39.2mm.
The output voltage is 24 VDC.
The maximum output current is 4.17 A.
The input voltage range is 85-264 VAC.
The efficiency is 92 % at full load.
The operating temperature range is -25°C to 85°C with derating.
Yes, it is certified to IEC/ES/EN-60601-1 3rd Edition and features 2xMOPP and BF rated outputs.
