| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

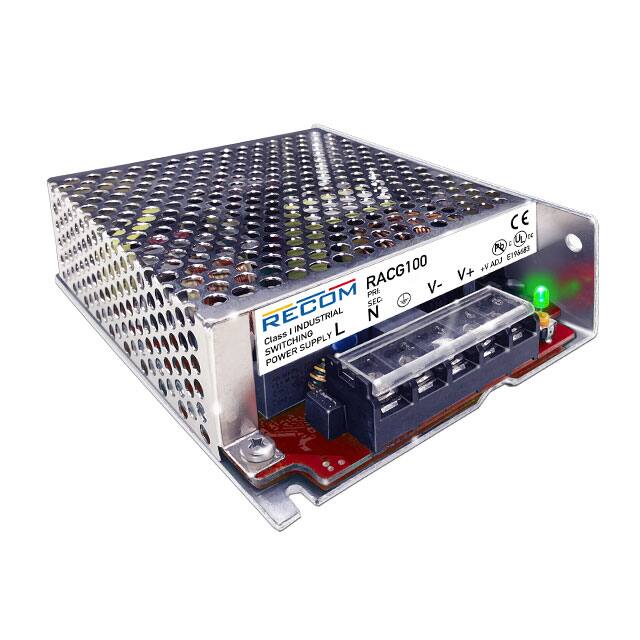

This Recom Power RACG100-12S is an enclosed AC/DC converter with a power rating of 100W and an output voltage of 12V. Designed for chassis mounting, it offers a robust solution for power conversion needs.
Key electrical specifications include an efficiency of 87% and an isolation voltage of 3 kV. The converter supports features such as adjustable output, DC input capability, Power Factor Correction (PFC), and universal input. It operates within a temperature range of -20°C to 60°C with derating.
Mechanical dimensions are 129.0mm in length, 98.0mm in width, and 38.0mm in height. The unit has a single output and is approved by CE and cURus agencies, making it suitable for ITE (Commercial) applications.
Compliance information indicates RoHS3 compliance, MSL 1 Unlimited, and REACH unaffected status. The RACG100-12S is a reliable choice for applications requiring stable AC to DC power conversion.
-20°C to 60°C with derating.
Chassis mount.
87%.
3 kV.
8.5 A.
Adjustable output, DC input capable, PFC, and universal input.
129.0 x 98.0 x 38.0 mm.
