| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

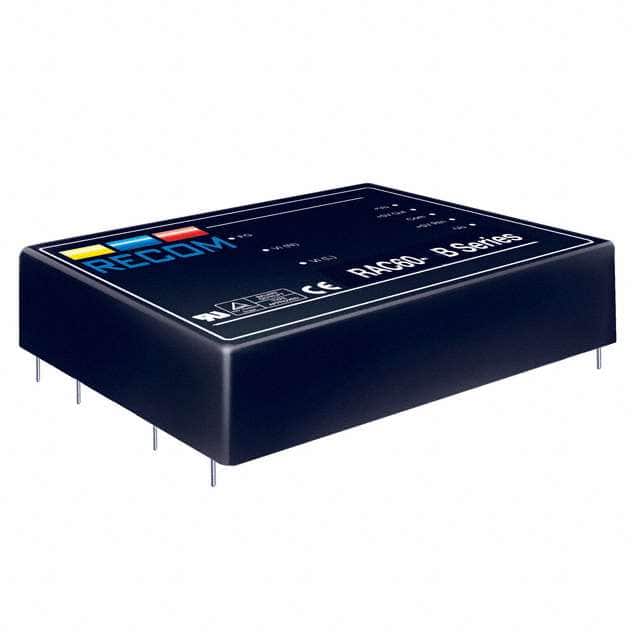

The RECOM Power RAC60-05SB is a 60 Watt AC/DC power module designed for PCB mounting. It features a universal input voltage range of 85-265 VAC, making it suitable for global applications. The converter provides a regulated 5VDC output with a maximum current of 10A, delivering up to 60W of power.
Key electrical specifications include an efficiency of 82% at full load, ±1.0% typical line regulation, and 1.0% typical load regulation. It offers 4kVAC isolation and is protected against short circuits. The output voltage can be trimmed by ±10% to compensate for voltage drops.
This module is housed in a 6-DIP module package and is designed for through-hole mounting. It operates within a temperature range of -40°C to 70°C with derating. The RAC60-05SB is UL60950-1, EN60950-1, and CAN/CSA-C22.2 No. 60950-1 certified, and compliant with EN55032 and EN55024 standards.
The RAC60-05SB provides a nominal 5VDC output voltage.
The maximum output current for the RAC60-05SB is 10A.
The RAC60-05SB has a power rating of 60 Watts.
The RAC60-05SB accepts a universal input voltage range of 85 to 265 VAC.
The typical efficiency of the RAC60-05SB is 82% at full load.
The operating temperature range for the RAC60-05SB is -40°C to 70°C, with derating.
The RAC60-05SB is a through-hole mounted module.
