| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

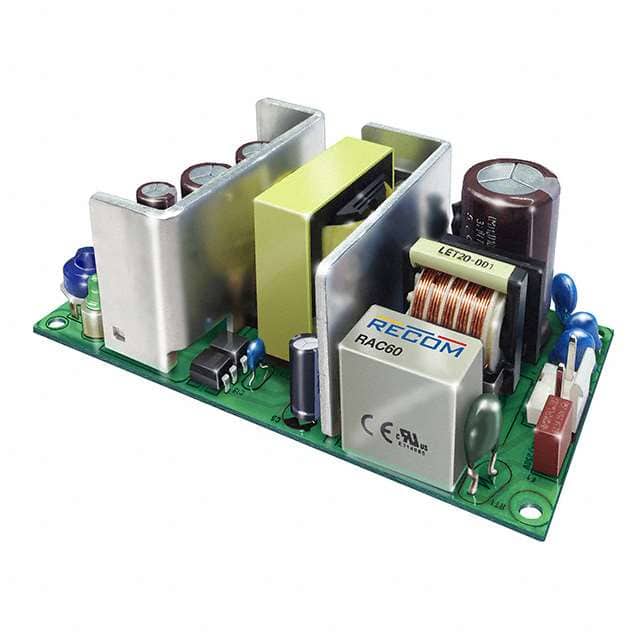

The RECOM Power RAC60-05S/OF is a 60 Watt, single output, open frame AC/DC converter designed for various applications. It accepts a universal input voltage range of 90-264VAC and provides a regulated 5VDC output with a maximum current of 10A. This converter is built with essential protections including Over Current Protection (OCP), Over Voltage Protection (OVP), and Short Circuit Protection (SCP).
With an efficiency of 80% and a standby power consumption conforming to ErP standards (<0.5W), the RAC60-05S/OF is suitable for energy-efficient product designs. It offers 3kVAC isolation and operates within an ambient temperature range of -20°C to +70°C with derating. The compact dimensions of 101.6mm x 50.8mm x 30.0mm make it ideal for space-constrained applications.
Certifications include CB, CE, and cURus, making it suitable for ITE (Commercial) applications. The open frame construction and chassis mount type facilitate integration into various systems.
The RAC60-05S/OF provides a single output of 5 VDC at a maximum current of 10 A.
The universal AC input voltage range is 90 to 264 VAC.
The operating temperature range is -20°C to +50°C at full load, with derating up to +70°C.
It includes over-current protection (115-150%), over-voltage protection, and short-circuit protection with hiccup mode and automatic restart.
It is a chassis-mount open frame power supply.
The typical efficiency is 80%.
The input-to-output isolation is rated at 3 kVAC.
