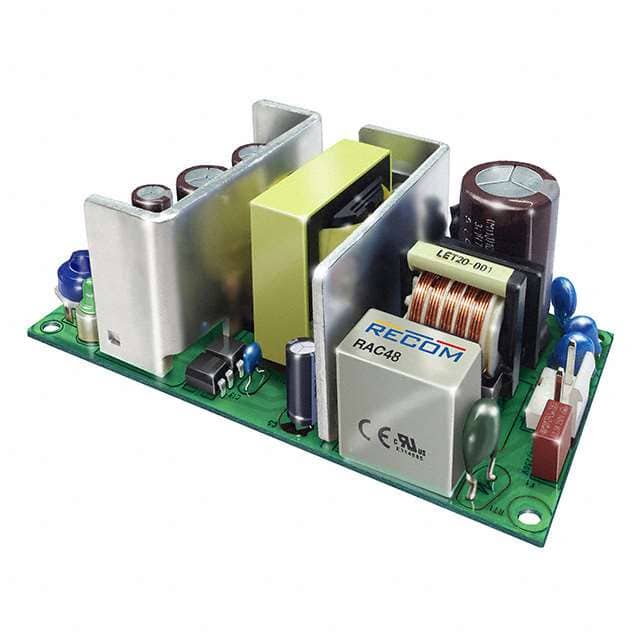

The RECOM Power RAC48-15S/OF is a 48 Watt open frame AC-DC power supply designed for ITE (Commercial) applications. It offers a universal input voltage range of 90-265 VAC and provides a regulated 15VDC output at up to 3.2A.
Key electrical specifications include a rated power of 48W, a typical efficiency of 84%, and 3kVAC isolation. The converter includes over-current protection (OCP), over-voltage protection (OVP), and short-circuit protection (SCP) with automatic restart or latch mode depending on the fault.
This unit is designed for chassis mounting and has a compact open frame construction. Its dimensions are 101.6mm x 50.8mm x 30.0mm. The operating temperature range is -20°C to 70°C with derating. It is certified by CB, CE, and cURus.
Applications include industry controls, test and measurement systems, and energy-efficient products.
The output voltage is 15 VDC.
The maximum output current is 3.2 A.
The rated power is 48W.
The typical efficiency is 84%.
The input voltage range is 90-265 VAC.
The dimensions are 101.6mm x 50.8mm x 30.0mm.
The operating temperature range is -20°C to 70°C (With Derating).
