| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Country of Origin | |
| Current | |
| Depth | |
| Efficiency | |
| Features | |
| Height | |
| Industrial Grade | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Power Rating | |
| Standards | |
| Type | |
| Voltage | |
| Weight | |
| Width |

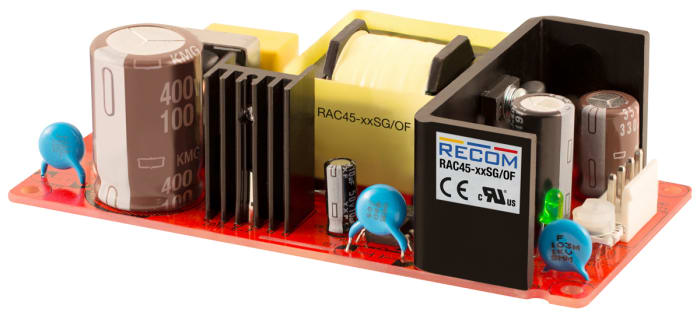

The Recom Power RAC45-12SG/OF is a 48W AC/DC converter designed for various applications. It provides a stable 12V dc output at 3.7A, suitable for powering electronic systems.
Key specifications include a wide universal input voltage range of 90 to 264V ac, allowing for global compatibility. The converter operates with an efficiency of up to 86% and has a power rating of 48W. It is designed with an open frame package for easy integration into system designs.
The operating temperature range is from -25°C to +60°C, with derating applied. The unit measures 101.6mm in length, 51mm in width, and 28mm in depth, with a weight of 126g. It is certified by CE and cURus, indicating compliance with relevant safety standards.
This AC/DC converter is suitable for ITE (Commercial) applications and features adjustable output and universal input capabilities. It also offers protection against short circuits and overloads.
The output voltage is 12V dc.
The output current is 3.7A.
The power rating is 48W.
It has 1 output.
The input voltage range is 90 to 264V ac.
The operating temperature range is -25°C to +60°C (with derating).
It comes in an open frame package.
