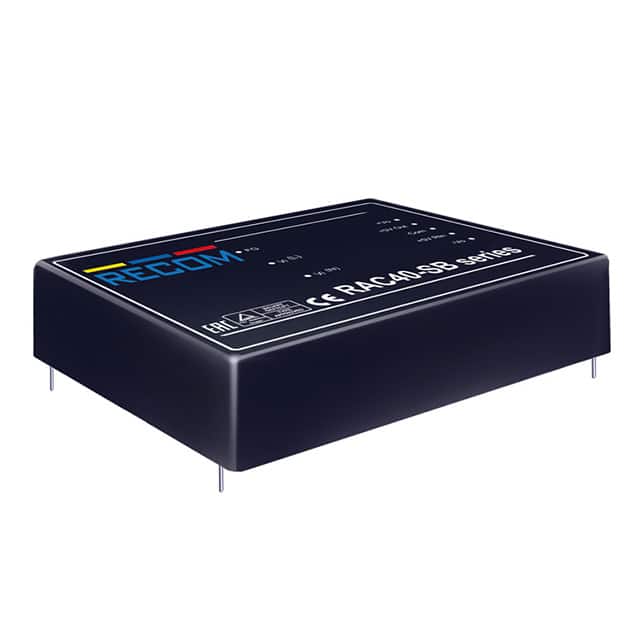

The Recom Power RAC40-15SB is a regulated AC/DC converter designed for PCB or DIN-rail mounting. It provides a 15VDC output with a current rating of 2.67A, delivering a total of 40W of power. The converter features a universal input voltage range of 90-264 VAC, making it suitable for global applications.
Key electrical specifications include an efficiency of 83% at full load and 3kVAC isolation for enhanced safety. The operating temperature range is -40°C to 70°C with derating. The unit is protected against short circuits and offers low output ripple and noise.
Mechanically, the RAC40-15SB is housed in a 7-DIP module with 5 leads and is designed for through-hole mounting. Its dimensions are 89.0mm x 63.5mm x 27.0mm. The converter is CE marked and certified to EN60950-1 standards, making it suitable for ITE (Commercial) applications.
This series is noted as 'NOT RECOMMENDED FOR NEW DESIGNS' with a last time buy date of October 30, 2020.
The output voltage is 15 VDC.
The input voltage range is 90-264 VAC.
The maximum output current is 2.67 A.
The power rating is 40 W.
The operating temperature range is -40°C to 70°C with derating.
It is a 7-DIP Module with 5 Leads.
