| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Medical Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Temperature Coefficient | |
| Type | |
| Voltage |

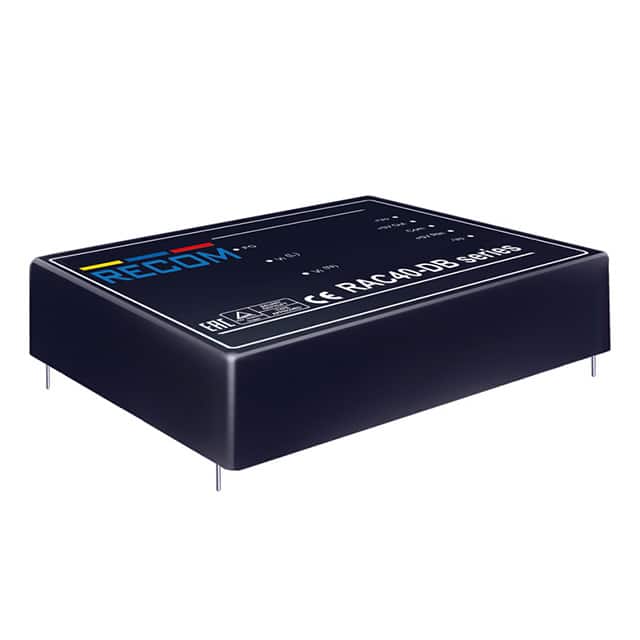

The RECOM Power RAC40-15DA-E is a 40W AC/DC power supply converter from the POWERLINE RAC40-A series. It offers dual outputs of +/-15V with a maximum current of 1.33A per output. The converter features a universal input voltage range of 90-264 VAC and an efficiency of 83%.
Designed for demanding applications, this AC/DC converter boasts 4000VAC isolation and low leakage current, making it suitable for medical applications as indicated by its UL-60601-1 certification. It includes features such as short circuit protection and automatic restart.
The unit is enclosed and designed for through-hole mounting, with dimensions of 89.0mm x 63.5mm x 27.5mm. It operates within an ambient temperature range of -25°C to +70°C with derating, and storage temperatures from -40°C to +100°C.
The RAC40-15DA-E provides dual outputs of +15V and -15V.
The power rating for the RAC40-15DA-E is 40 Watts.
The RAC40-15DA-E accepts a universal input voltage range of 90-264 VAC or 100-370 VDC.
The standard operating temperature range is -25°C to +70°C.
Yes, the RAC40-15DA-E is UL-60601-1 certified for medical applications.
