| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Width |

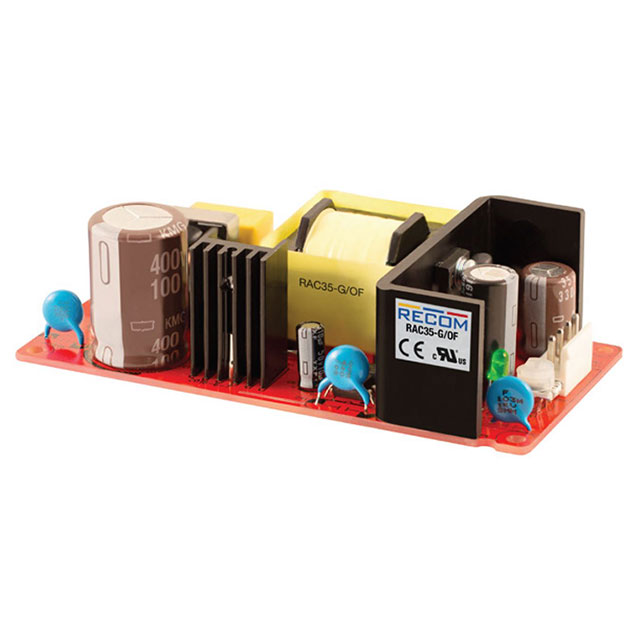

This Recom Power RAC35-48SG/OF is an AC/DC converter designed for ITE (Commercial) applications. It operates with a universal input and provides an adjustable output.
The converter has a power rating of 36W and delivers a current of 750mA. Key electrical specifications include an efficiency of 86% and an isolation voltage of 3 kV. The operating temperature range is from -20°C to 65°C with derating.
Mechanically, this unit is designed for chassis mounting and has dimensions of 101.6mm in length, 51.0mm in width, and 28.0mm in height. It features a single output and is approved by CE and cURus.
Compliance information indicates RoHS3 compliance, Moisture Sensitivity Level 1, and REACH unaffected status. This model is suitable for various commercial applications requiring a reliable AC/DC power conversion.
-20°C to 65°C with derating.
Open frame chassis mount.
86%.
3 kV.
Yes, it features adjustable output and universal input.
101.6mm x 51.0mm x 28.0mm.
CE and cURus.
