| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Country of Origin | |
| Current | |
| Efficiency | |
| Features | |
| Input Voltage | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Weight |

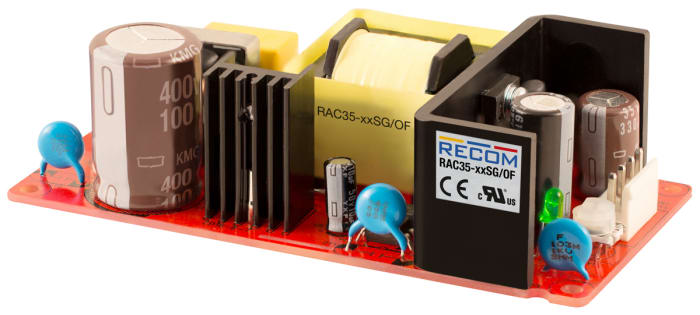

The Recom Power RAC35-24SG/OF is a 36W open frame AC/DC converter designed for various applications. It provides a stable 24V dc output at 1.5A, suitable for systems requiring a single output.
This converter operates with a universal input voltage range of 90-264V ac, making it versatile for global use. It features an efficiency of 83% and is designed for chassis mounting. The compact dimensions of 101.6mm x 51mm x 28mm allow for integration into space-constrained designs.
Key specifications include an isolation voltage of 3kV and an operating temperature range of -25°C to 65°C with derating. The unit is protected against short circuits and overloads. It is certified by CE and cURus, indicating compliance with relevant safety standards.
Applications for this power supply include ITE (Commercial) equipment, industry control, and test and measurement systems. Its open frame construction and robust specifications make it a reliable choice for embedded power solutions.
The output voltage is 24V dc.
The maximum output current is 1.5A.
The power rating is 36W.
The input voltage range is 90-264V ac.
The operating temperature range is -25°C to 65°C with derating.
It comes in an open frame package.
