| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| SVHC Present | |
| Termination Style | |
| Type | |
| Voltage |

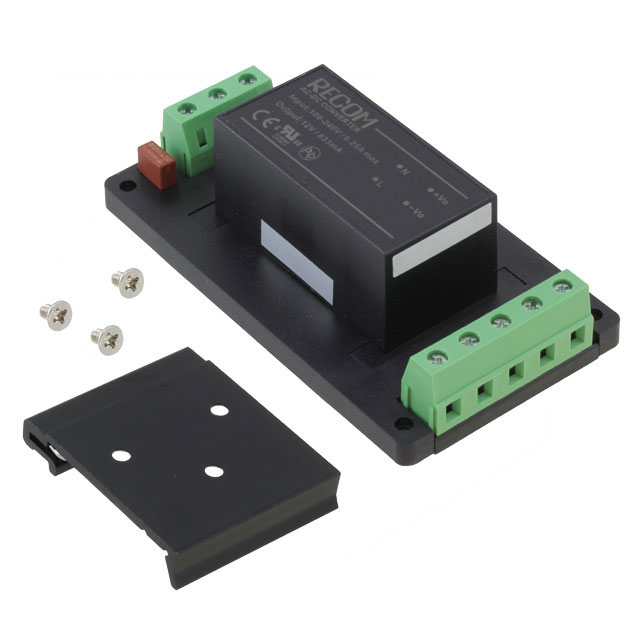

The RECOM Power RAC30-12DA-ST is a 30 Watt AC/DC power module designed for ITE (Commercial) applications. It features a universal input voltage range of 90-264 VAC, making it suitable for global use.
This converter offers dual outputs of +/-12VDC with a maximum current of 1.25A per output. It boasts an efficiency of 82% at full load and provides 3000VAC isolation for one minute. The operating temperature range is -25°C to 70°C with derating.
Designed for chassis mounting, the RAC30-12DA-ST has dimensions of 111.9mm x 63.7mm x 30.5mm. It meets CE and cURus approval agency standards. The part is also noted as End of Life and Not Recommended for New Designs.
Key electrical specifications include an output accuracy of ±2.0% typical, line regulation of ±1.0% typical, and load regulation of 3.0% typical.
The input voltage range is 90-264 VAC.
The output voltages are ±12 VDC.
The total output power is 30W.
The operating temperature range is -25°C to 70°C with derating.
The dimensions are 111.9mm x 63.7mm x 30.5mm (4.41" x 2.51" x 1.20").
The mounting type is chassis mount.
The isolation voltage is 3000 VAC for 1 minute.
