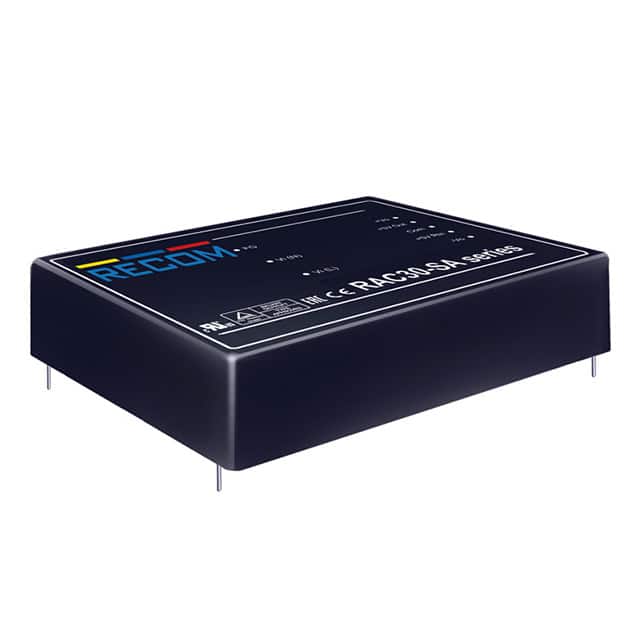

The RECOM Power RAC30-12DA-E is a 30 Watt AC/DC power module designed for PCB mounting. It features a universal input voltage range of 90-264VAC, making it suitable for global applications. This converter provides dual outputs of +/-12VDC, each capable of delivering 1.25A, for a total of 30W.
Key electrical specifications include an efficiency of 82% and 3000VAC isolation for one minute. The module is protected against short circuits. It operates within a temperature range of -40°C to 70°C with derating.
Mechanically, the RAC30-12DA-E has dimensions of 89.0mm x 63.5mm x 25.3mm and is designed for through-hole mounting. It is certified by CE and cULus, complying with UL60950-1, CSA C22.2 No. 60950-1-07, EN60950-1, EN55032, and EN55024 standards. This converter is suitable for ITE (Commercial) applications.
It provides dual ±12V outputs, each rated at 1.25A, for a total power of 30W.
The input voltage range is 90-264VAC.
The isolation voltage is 3000VAC for 1 minute.
It is certified to UL60950-1, CSA C22.2 No. 60950-1-07, and EN60950-1. It also complies with EN55032 and EN55024.
The operating temperature range is -40°C to 70°C with derating.
It is a 7-DIP module with 5 leads and through-hole mounting.
The typical efficiency is 82%.
