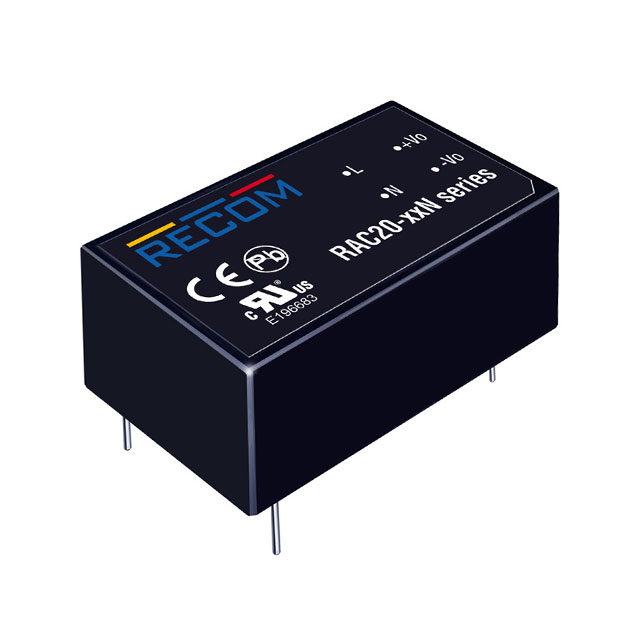

The RECOM Power RAC20-3.3SN is an enclosed AC DC converter designed for ITE (Commercial) applications. It provides a single output of 3.3V with a maximum current of 3.6A, delivering a total power of 12W.
This converter operates with a universal input voltage range of 90 to 264 VAC and boasts an efficiency of 73%. Key electrical specifications include line regulation of ±0.5% and load regulation of ±1%. The operating temperature range is -40°C to 70°C with derating.
The unit is housed in a 4-DIP Module package and is designed for through-hole mounting. Its dimensions are 52.5mm in length, 27.4mm in width, and 23.5mm in height. The RAC20-3.3SN is approved by CE and cURus agencies.
The RAC20-3.3SN provides a single output voltage of 3.3V.
The maximum output current for the RAC20-3.3SN is 3.6A.
The power rating of the RAC20-3.3SN is 12W.
The input voltage range for the RAC20-3.3SN is 90 to 264 VAC.
The operating temperature range is -40°C to 70°C with derating.
The RAC20-3.3SN is supplied in a 4-DIP Module package.
The RAC20-3.3SN is designed for through-hole mounting.
