| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Halogen Free | |
| Height | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Type | |
| Voltage | |
| Weight | |
| Width |

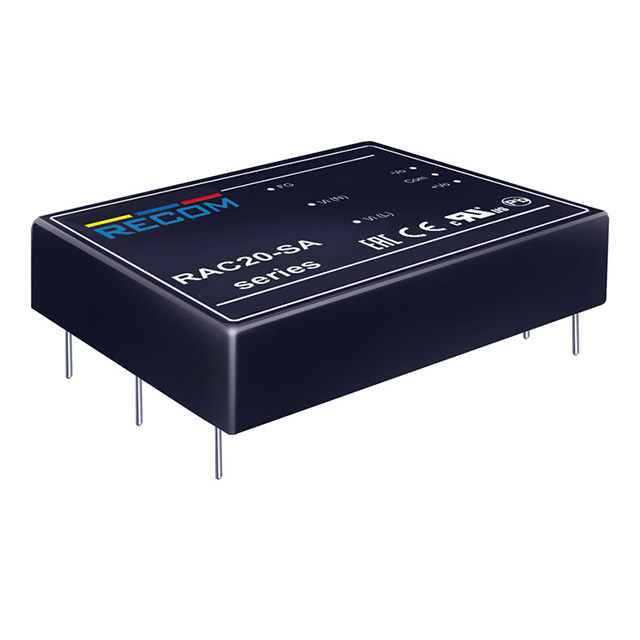

The Recom Power RAC20-15SA is an enclosed AC/DC converter designed for ITE (Commercial) applications. It provides a single 15V output with a maximum current of 1.34A, delivering a total power of 20W.
This converter operates with a universal input voltage range of 90 to 264 VAC and boasts an efficiency of 83%. Key electrical specifications include line regulation of ±0.5% and load regulation of ±1%. The operating temperature range is -25°C to 70°C with derating.
Designed for through-hole mounting, the RAC20-15SA comes in an 8-DIP Module, 5 Leads package. Its dimensions are 70.0mm x 48.0mm x 22.3mm, and it weighs approximately 110.22g. The unit is approved by CE and cULus and complies with standard 60950-1.
90-264 VAC.
8-DIP Module, 5 Leads.
-25°C to 70°C with derating.
15V at 1.34A.
20W.
83%.
2.76" L x 1.89" W x 0.88" H (70.0mm x 48.0mm x 22.3mm).
