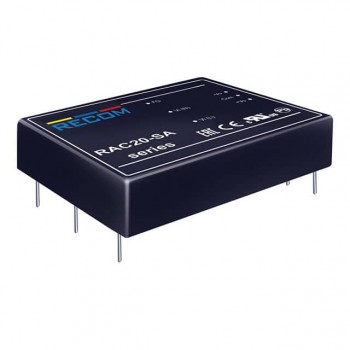

The RECOM Power RAC20-09DA is a compact 20 Watt AC/DC power supply module designed for PCB mounting. It offers a universal input voltage range of 90-264 VAC, making it suitable for global applications.
This converter provides dual outputs of +/-9VDC, each capable of delivering up to 1.12A. Key electrical specifications include 3000VAC isolation, continuous short circuit protection, and automatic restart. The operating temperature range is -25°C to 70°C with derating.
Designed for ITE (Commercial) applications, the RAC20-09DA features through-hole mounting and is housed in an 8-DIP Module, 6 Leads package. It has dimensions of 70.0mm x 48.0mm x 22.3mm. The unit is CE and cULus certified, ensuring compliance with relevant safety standards.
Additional features include over-current protection at 105% and over-voltage protection via a Zener Diode Clamp. The operating frequency is typically 100kHz.
90-264 VAC or 100-375 VDC.
+9 VDC and -9 VDC.
20 W.
-25°C to 70°C with derating.
8-DIP Module, 6 Leads with Through Hole mounting.
Yes, continuous with automatic restart.
3000 VAC.
