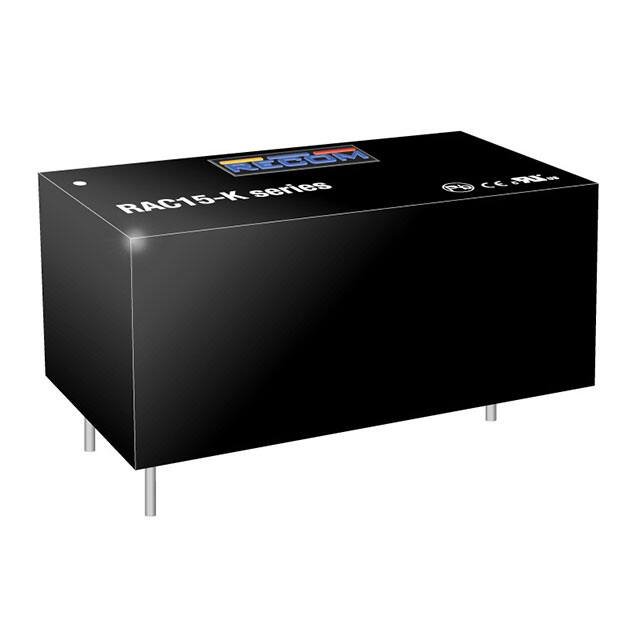

The RECOM Power RAC15-24SK is a highly efficient AC/DC power conversion module designed for PCB mounting. It operates with a wide input voltage range of 85-264VAC, making it suitable for global applications. This model provides a regulated 24VDC output at up to 615mA, delivering a total of 15 Watts of power.
Key features include an efficiency of 85% and an operating temperature range of -40°C to 85°C with derating. The converter is designed for through-hole mounting and comes in a 5-DIP module package. It is suitable for applications such as household appliances and ITE (Information Technology Equipment).
This series is optimized for low energy losses, especially in light load conditions, and meets EMC class B compliance without external components. It also features low no-load power consumption.
The input voltage range is 85-264VAC (or 120-370VDC).
It provides a single output of 24VDC at 615mA.
The power rating is 15W.
The operating temperature range is -40°C to 85°C (with derating).
Typical no-load power consumption is 40mW at 230VAC input.
It comes in a 5-DIP module (4 leads) with through-hole mounting, measuring 52.5mm x 27.4mm x 23.0mm.
Typical efficiency is 85% at 230VAC input and 25°C ambient.
