| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Isolation | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

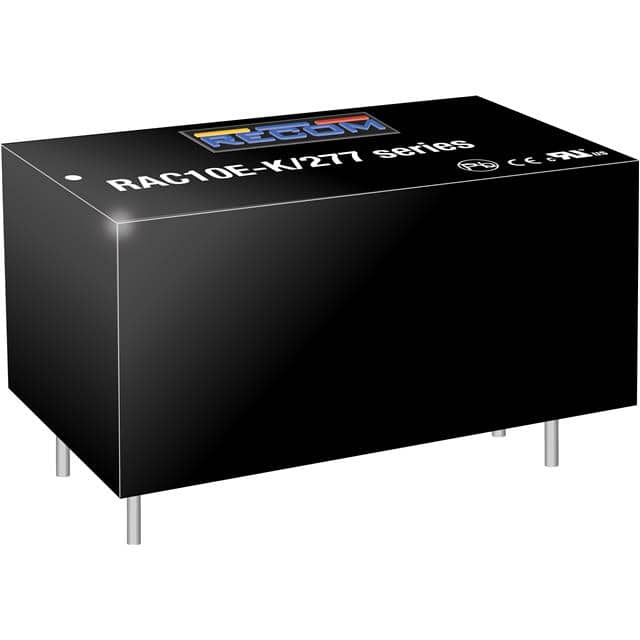

The Recom Power RAC10E-05SK/277 is an AC/DC converter from the RAC10E-K/277 series, delivering 10W of power. It features a wide input voltage range of 85-305VAC and provides a regulated 5VDC output with a maximum current of 2A.
This converter boasts a typical efficiency of 80% and operates with a compact footprint, measuring 45.7 x 25.4 x 21.5mm. It is designed for through-hole mounting, making it suitable for PCB applications.
Key features include 4kVAC isolation, an operating temperature range from -40°C to +90°C, and compliance with EN55032 Class B standards. The device is suitable for ITE (Commercial) applications and meets international safety certifications.
With a low no-load power consumption of less than 100mW, this AC/DC converter is an efficient choice for various industrial and commercial power supply needs.
85-305 VAC or 120-430 VDC.
4-DIP Module, through-hole mounting.
-40°C to +65°C.
4kVAC input to output.
2A maximum.
80% typical.
IEC/EN 62368-1.
