| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage |

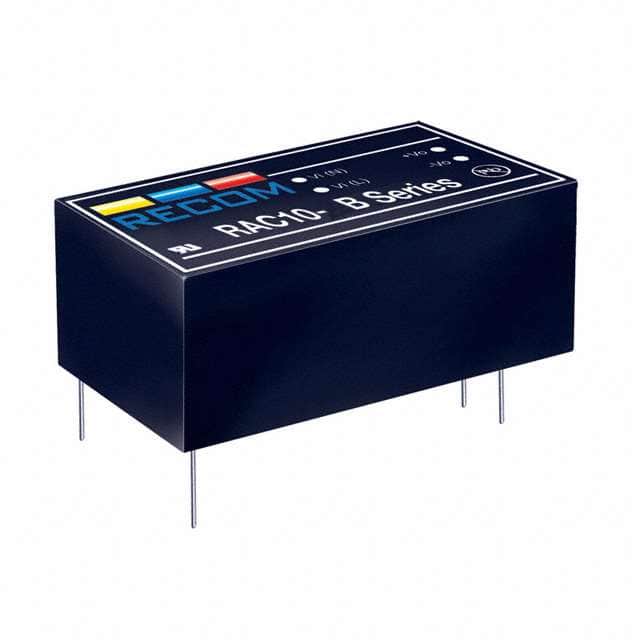

The RECOM Power RAC10-12SB is a compact 10 Watt AC/DC power supply designed for PCB mounting. It operates with a universal input voltage range of 90-264 VAC, making it suitable for global applications.
This converter provides a regulated 12VDC output at 833mA, delivering a total power of 10W. Key electrical specifications include a typical efficiency of 76% at full load, ±0.3% line voltage regulation, and ±0.5% load voltage regulation. It also features short circuit protection with automatic restart.
The RAC10-12SB is housed in a 4-DIP Module package and utilizes Through Hole mounting. Its dimensions are 52.3mm in length, 27.2mm in width, and 23.8mm in height. The operating temperature range is -25°C to 70°C with derating.
This series is UL Certified and CE Marked, indicating compliance with relevant safety and regulatory standards. The part is also noted as 'End Of Life' and not recommended for new designs.
The RAC10-12SB provides a nominal output voltage of 12 VDC.
The maximum output current for the RAC10-12SB is 833mA.
The RAC10-12SB accepts an input voltage range of 90-264 VAC.
The RAC10-12SB has a power rating of 10 Watts.
The typical efficiency of the RAC10-12SB at full load is 76%.
The operating temperature range for the RAC10-12SB is -25°C to 70°C with derating.
The RAC10-12SB is designed for Through Hole mounting.
