| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Temperature Coefficient | |
| Type | |
| Voltage |

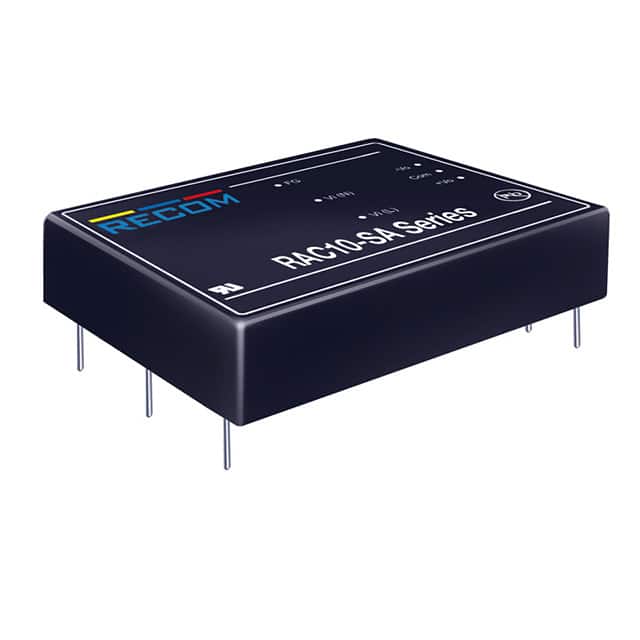

The RECOM Power RAC10-12SA-E is a compact 10 Watt AC-DC power supply module designed for PCB mounting. It features a universal input voltage range of 90-264 VAC and provides a regulated 12V DC output at 833mA.
Key electrical specifications include a typical efficiency of 74% at full load, 3000V AC isolation voltage, and short circuit protection with automatic restart. The operating temperature range is -40°C to +70°C with derating.
This converter is suitable for ITE (Commercial) applications and is UL certified and CE marked. It comes in a 6-DIP module package with through-hole mounting. The standard package quantity is 5 pieces.
90-264 VAC.
6-DIP Module, 5 Leads (through-hole).
-40°C to 70°C with derating.
12 VDC at 833mA.
3000 VAC input to output.
74% at full load.
Short circuit protection with hiccup mode and automatic restart.
