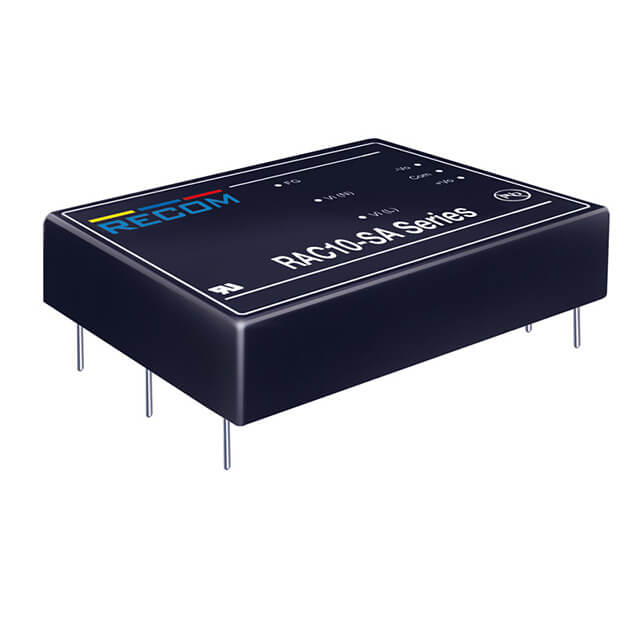

This RECOM RAC10-12DA-E-ST is an enclosed AC/DC converter designed for ITE (Commercial) applications. It accepts a wide input voltage range from 90 to 264 VAC, making it suitable for global use.
The converter delivers a total power of 10W, with dual outputs providing +12VDC and -12VDC, each capable of supplying up to 380mA. The efficiency is rated at 75%.
With a chassis mount type, this unit is designed for easy integration into systems. Its dimensions are 96.0mm in length, 53.9mm in width, and 27.0mm in height. The operating temperature range is -40°C to 70°C with derating.
Key electrical specifications include 3 kV isolation and features such as DC input capability and universal input.
The input voltage range is 90-264 VAC.
Output 1: +12 VDC at 380 mA. Output 2: -12 VDC at -380 mA.
The power rating is 10 W.
The isolation voltage is 3 kV.
The operating temperature range is -40°C to 70°C with derating.
The mounting type is chassis mount.
The package type is BOX.
