| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,000 pcs
|
1000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Hold Up Time | |
| Input Current | |
| Input Frequency Range | |
| Input Voltage Range | |
| Inrush Current | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

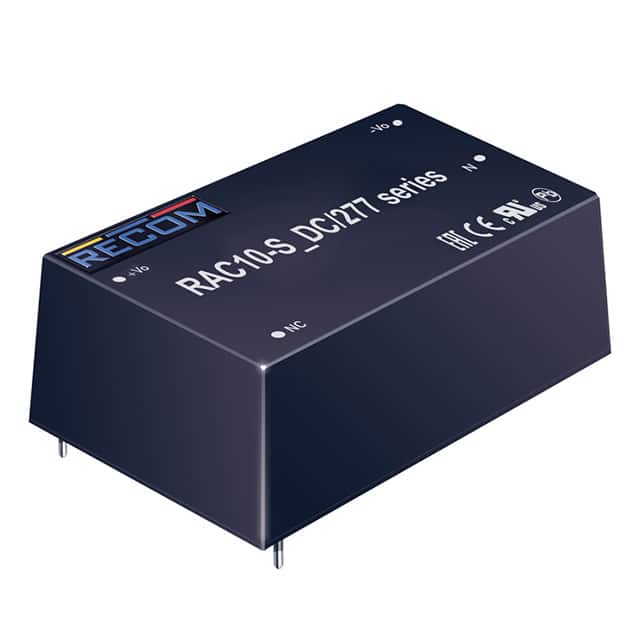

The Recom Power RAC10-05SC/277 is a 10-watt AC/DC power supply module designed for various industrial applications. It features a regulated 5VDC output with a maximum current of 2A, providing a total power of 10W. The converter operates with a wide input voltage range from 80 to 305 VAC, ensuring compatibility with global power grids.
This enclosed module boasts a high efficiency of 78% and a low standby power consumption of less than 300mW. It includes features such as universal input, continuous short circuit protection, and an isolated output of 3.75kVAC. The operating temperature range is -20°C to 70°C, with derating.
Designed for ease of integration, the RAC10-05SC/277 meets EN55032 Class B emissions standards without external components. It is suitable for applications in automation, Industry 4.0, IoT, lighting, and smart buildings. The module is mounted via through-hole.
Key electrical specifications include an input current of 250mA, an inrush current of 15A, and a hold-up time of 50ms. The unit is certified to IEC/EN60950-1 and UL60950-1 standards.
The output voltage is 5 VDC.
The input voltage range is 80-305 VAC.
The maximum output current is 2A.
The power rating is 10W.
The efficiency is 78%.
The operating temperature range is -20°C to 70°C (With Derating).
It meets EN55032 Class B emissions and is IEC/EN60950-1, UL60950-1 certified.
