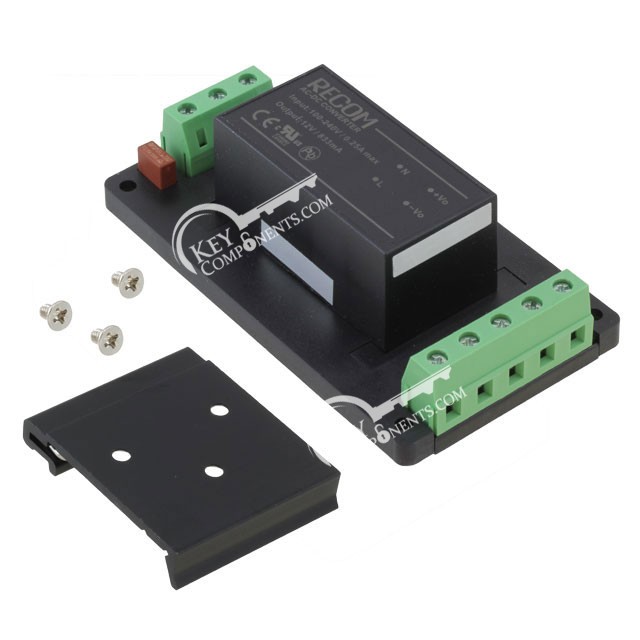

The Recom Power RAC10-05DA-ST is an enclosed AC/DC converter designed for commercial ITE applications. It provides dual outputs of +5V and -5V, each capable of delivering up to 800mA, for a total power output of 10W.
This converter operates with a wide input voltage range of 90 to 264 VAC, making it suitable for global use. It achieves an efficiency of 73% and offers an isolation voltage of 3kV. The operating temperature range is from -25°C to 70°C with derating.
Designed for chassis mounting, the RAC10-05DA-ST has a compact form factor with dimensions of 96.0mm x 53.9mm x 27.0mm. It includes features such as DC input capability and universal input, enhancing its versatility in various power supply designs.
The RAC10-05DA-ST provides dual outputs: +5V and -5V, each rated at 800mA maximum current.
The input voltage range is 90 to 264 VAC.
The power rating is 10W.
The operating temperature range is -25°C to 70°C with derating.
The isolation voltage is 3kV.
The efficiency is 73%.
The mounting type is chassis mount.
