| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

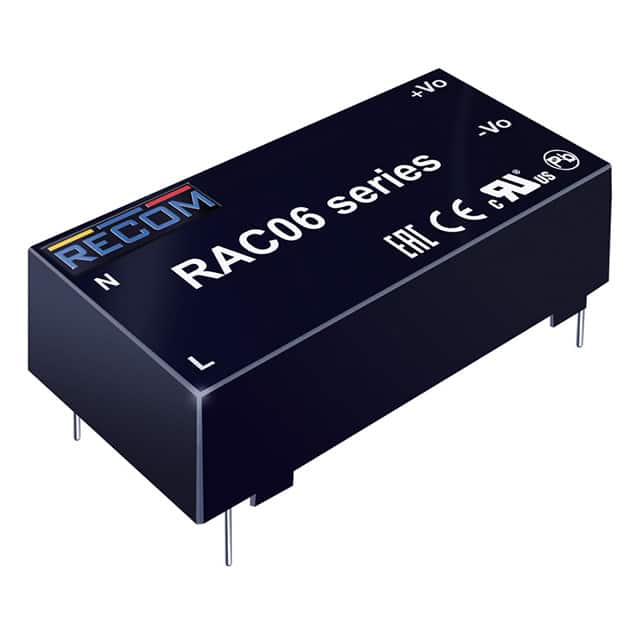

The Recom Power RAC06-05SC is a compact, low-cost, high-efficiency switching AC/DC power module designed for PCB mounting. It operates with a universal input voltage range of 80-264 VAC and provides a regulated 5VDC output at up to 1.2A, delivering a total of 6 Watts.
This module is suitable for ITE (Commercial) applications and features universal input voltage, Class II power supply with 3kVAC isolation, low output ripple and noise, and short circuit protection. It has an efficiency of 75% and operates within a temperature range of -25°C to 75°C with derating.
The RAC06-05SC is housed in a 5-DIP Module, 4 Leads package and is designed for Through Hole mounting. It complies with UL60950-1, CAN/CSA-C22.2 No. 60950-1, and IEC/EN60950-1 standards, and is CE/EAC marked.
Note: This part is Not Recommended for New Designs (NRND) with a Last Time Buy date of October 30, 2020.
The RAC06-05SC has a nominal output voltage of 5 VDC.
The maximum output current for the RAC06-05SC is 1.2 A.
The RAC06-05SC accepts a universal input voltage range of 80-264 VAC or 115-370 VDC.
The operating temperature range for the RAC06-05SC is -25°C to 75°C, with derating.
The RAC06-05SC is designed for Through Hole mounting.
The RAC06-05SC is listed as RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the RAC06-05SC is 1 Unlimited.
