| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

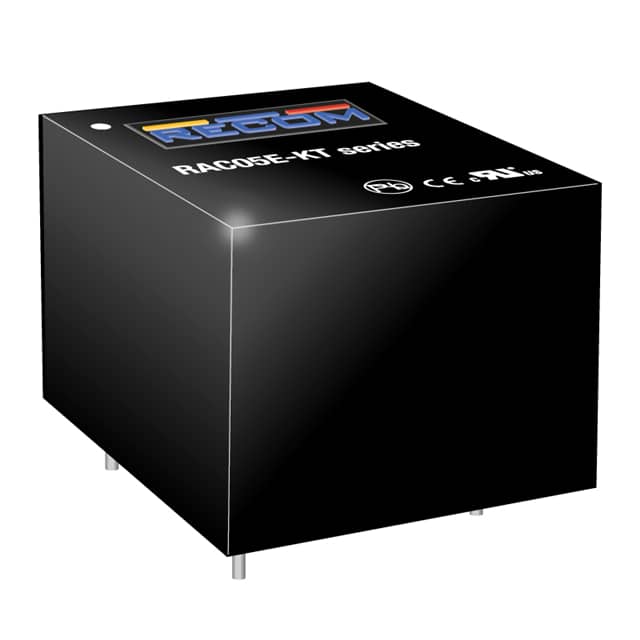

The RECOM Power RAC05E-05SKT is an enclosed AC/DC converter designed for general purpose applications. It delivers a 5W maximum output power with a nominal output voltage of 5VDC and a maximum output current of 1A. The converter operates with a wide input voltage range of 90-264VAC, making it suitable for worldwide use.
Key electrical specifications include a typical efficiency of 74% and a low no-load power consumption of less than 100mW. It features a start-up time of 20ms and a hold-up time of 20ms at 230VAC. The operating temperature range is -25°C to 75°C with derating.
This converter is designed for Through Hole mounting and comes in a 9-DIP Module, 4 Leads package. It is certified to standards such as IEC 62368-1 and EN 60335-1, with approval agencies including CB, CE, cURus, EAC, and UL.
Applications include household appliances and ITE (Commercial) equipment. The unit meets EN 55032 Class B and FCC Part 15 limits for electromagnetic compatibility without external components.
The input voltage range is 100-240 VAC (47-63 Hz) or 130-370 VDC.
The output is 5 VDC at 1A, providing 5W of power.
The operating temperature range is -25°C to 75°C with derating.
The package is a 9-DIP Module with 4 leads, through-hole mount.
Typical efficiency is 74% at nominal input and full load at +25°C ambient.
No-load power consumption is less than 100mW.
It complies with IEC 60335-1 (household appliances) and IEC 62368-1 (audio/video, ITE).
