| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

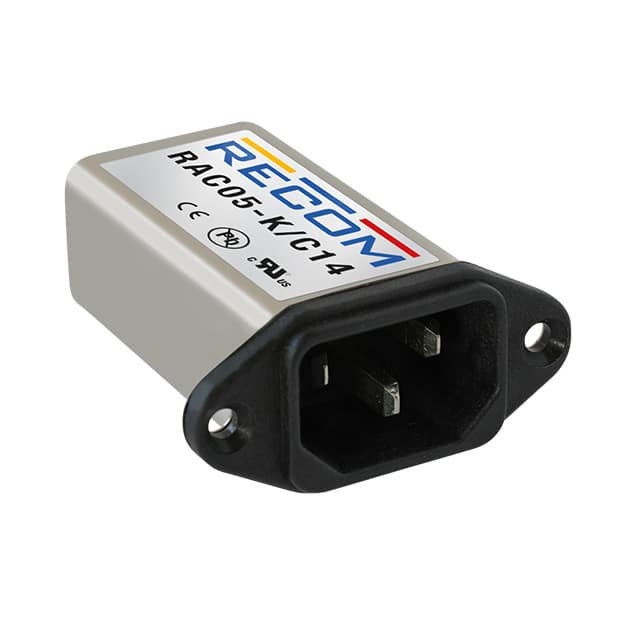

The RECOM Power RAC05-24SK/C14 is a 5 Watt AC/DC converter designed for versatile power supply applications. It features a universal input voltage range of 85-264VAC, making it suitable for global use. The converter provides a regulated 24VDC output at 210mA, with a typical efficiency of 84% at full load.
This model is enclosed and designed for panel mounting, facilitating easy integration into various systems. It operates within a temperature range of -25°C to 70°C (with derating) and offers an isolation voltage of 3kV. The RAC05-K/C14 series is ideal for powering single board computers and other electronic devices requiring a stable DC power source.
Key specifications include a typical hold-up time of 60ms at 230VAC and a start-up time of 20ms. The internal operating frequency is 130kHz. The unit integrates a mains filter and an isolated power supply within the same case, simplifying installation and reducing component count.
Compliance includes UL/IEC/EN62368-1 and IEC/EN60950-1 certifications, along with FCC Part 15 and EN55032 compliance. It is also RoHS3 compliant and has an MSL of 1.
The output voltage is 24 VDC.
The maximum output current is 210 mA.
The power rating is 5W.
The input voltage range is 85-264 VAC.
The typical efficiency is 84%.
The operating temperature range is -25°C to 70°C.
It is designed for panel mounting.
