| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

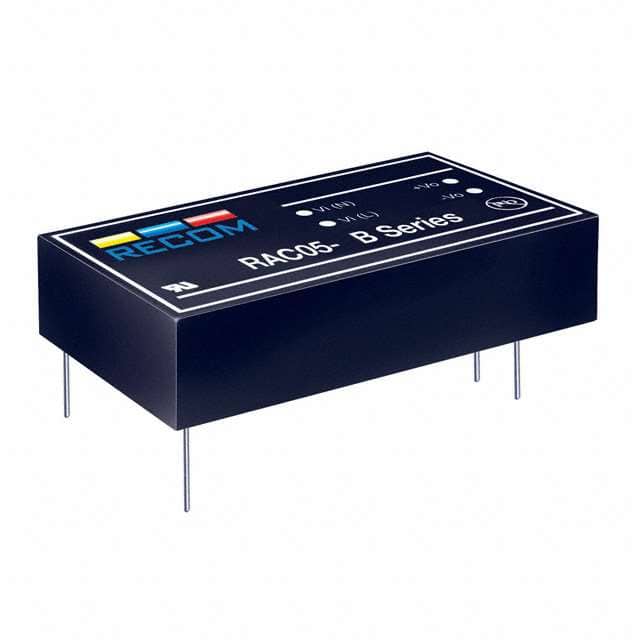

The Recom Power RAC05-24SB is a compact 5 Watt AC-DC power supply designed for PCB mounting. It features a universal input voltage range of 90-264 VAC, making it suitable for global applications. This converter provides a regulated single output with an accuracy of ±2% and features low output ripple and noise.
Key electrical specifications include a rated power of 5 Watts, an input frequency range of 47-440Hz, and an input current of 110mA/70mA at full load for 115VAC/230VAC respectively. It boasts very low no-load power consumption (80mW max) and includes short circuit protection with automatic restart.
Designed for reliability, the RAC05-24SB offers 3000VAC isolation between input and output and has a typical MTBF of 360 x 10^3 hours at +25°C. The operating temperature range is -25°C to +70°C with derating. The unit is housed in an Epoxy with Fibreglass (UL94V-0) case and is suitable for Through Hole mounting.
This AC/DC converter is UL Certified and CE Marked, suitable for ITE (Commercial) applications. Its robust design and compact package make it a versatile solution for various power supply needs.
The input voltage range is 90-264 VAC or 120-370 VDC.
It is a 4-DIP through-hole module.
The standard operating temperature range is -25°C to +70°C with derating; for the -E suffix version it is -40°C to +70°C.
24VDC.
3000 VAC for 1 minute.
Yes, hiccup mode with automatic restart.
50.8mm x 25.4mm x 15.7mm (2.00" x 1.00" x 0.62").
