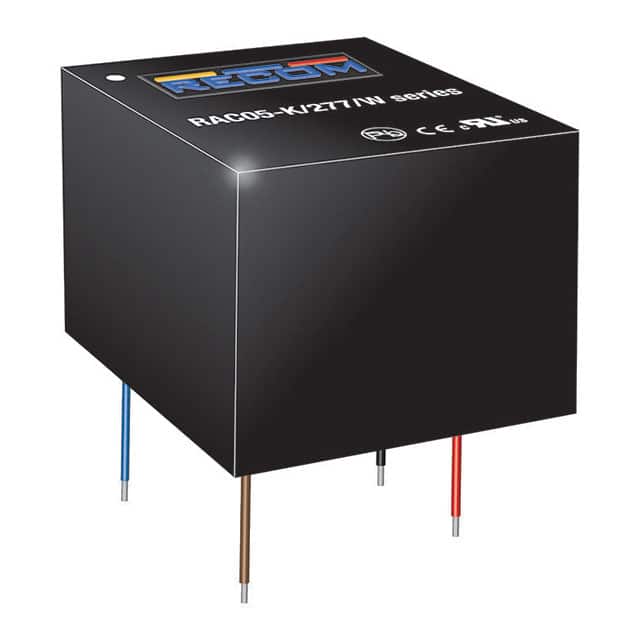

This AC/DC converter from RECOM Power, model RAC05-15SK/277/W, provides a 5W power output with a 15V rating. It is designed as an enclosed unit for convenient chassis mounting.
Key electrical specifications include a universal input feature and an efficiency rating of 83%. The converter offers a 3kV isolation voltage and operates across a wide temperature range of -40°C to 85°C, with derating applied at higher temperatures. It is suitable for applications in household appliances and ITE commercial equipment.
The unit has a single output and is approved by CB, CE, and cURus agencies. Its mechanical dimensions are 31.7mm in length, 26.7mm in width, and 21.8mm in height. The output current is rated at 330mA.
The output voltage is 15V and the output current is 330mA.
The power rating is 5W.
The efficiency is 83%.
The operating temperature range is -40°C to 85°C with derating.
It uses chassis mount mounting.
The dimensions are 31.7mm L x 26.7mm W x 21.8mm H.
It is designed for household appliances and ITE (commercial) applications.
