| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

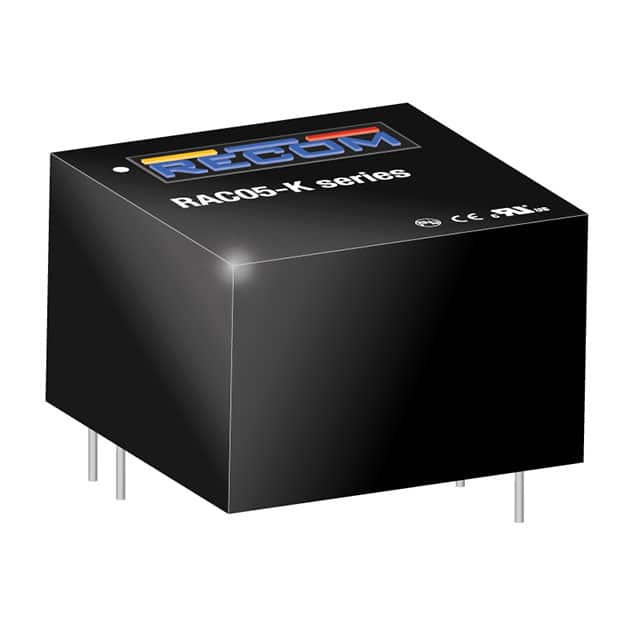

The RECOM Power RAC05-15SK is an ultra-compact AC/DC power supply module designed for industrial and IT solutions. It offers a 5W output power with a 15VDC voltage and 333mA current, operating from a universal input voltage range of 85-264 VAC.
Key electrical specifications include an efficiency of 82%, a wide input frequency range of 47-63 Hz, and low no-load power consumption. The converter is built with an internal input filter and provides electrical protection against short circuits and overvoltage.
This module is housed in a lightweight, fully-encapsulated plastic casing with a 1" x 1" footprint, suitable for through-hole mounting. It meets internal EMC class B limits without external components, making it ideal for IOT applications and control equipment where space and performance are critical.
Compliance includes CE and cURus approvals. The operating temperature range is -25°C to 70°C with derating.
The output voltage is 15 VDC.
The maximum output current is 333mA.
The input voltage range is 85 ~ 264 VAC or 120 ~ 370 VDC.
The efficiency is 82%.
The operating temperature range is -25°C to 70°C, with derating.
It is in a 5-DIP Module package.
It is a through-hole mounting type.
