| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Width |

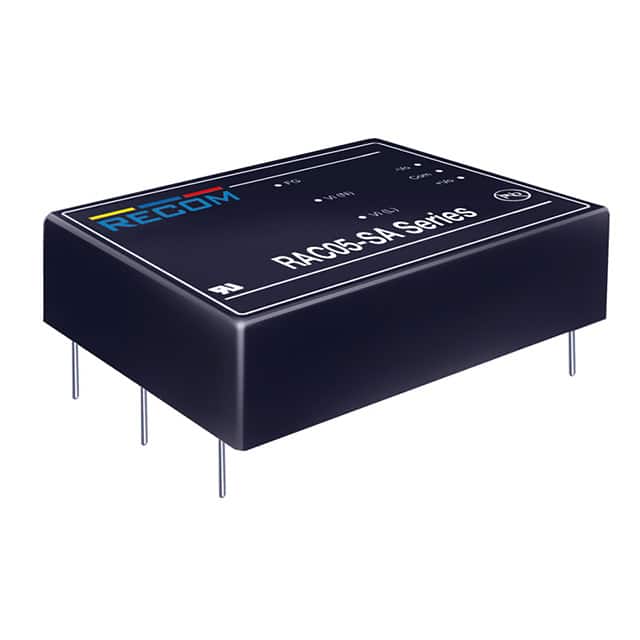

The RECOM Power RAC05-15SA-E is a 5 Watt AC/DC power supply designed for PCB mounting. It operates with a universal input voltage range of 90-264 VAC and provides a regulated 15VDC output at 333mA.
Key electrical specifications include a nominal efficiency of 70% at full load and 3000VAC isolation between input and output. The converter is protected against short circuits with a hiccup mode and automatic restart.
This unit is housed in a 6-DIP Module package with 5 leads and is designed for Through Hole mounting. The operating temperature range is -40°C to +70°C with derating, and it has a maximum humidity rating of 95% RH.
Compliance includes CE and cULus approvals. The product is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected. Note that this part is not recommended for new designs and has a last time buy date of March 31, 2024.
The output voltage is 15 VDC.
The maximum output current is 333mA.
The input voltage range is 90-264 VAC.
The power rating is 5 Watts.
The operating temperature range is -40°C to +70°C with derating.
It is mounted using the Through Hole method.
Yes, it is RoHS3 Compliant.
