| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage |

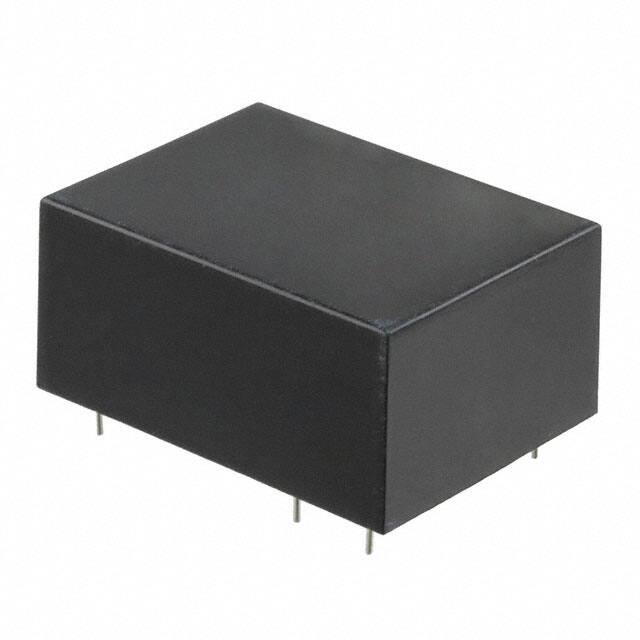

The RECOM Power RAC04-3.3SC/230 is a regulated AC/DC converter designed for board-level power supplies, home automation, and instrumentation systems. It operates with a universal input voltage range of 80-264VAC and delivers a stable 3.3VDC output at up to 1.2A, providing a total power of 4W.
Key electrical features include an efficiency of up to 79% (72% typical at full load), very low standby power consumption of 100mW at no load, and continuous short circuit protection. The converter offers 3.75kVAC isolation, ensuring safety and reliability in various applications. It meets EN55032 class B emissions standards without external components.
This converter is housed in an encapsulated PCB-mount package, specifically a 7-DIP module with 6 leads, designed for through-hole mounting. It operates across a wide temperature range of -40°C to 80°C with derating. The dimensions are 36.7mm in length, 27.2mm in width, and 17.1mm in height.
Certifications include CE and cULus, making it suitable for ITE (Commercial) applications. The RAC04-3.3SC/230 is designed for reliable performance in demanding environments.
The output voltage is 3.3 VDC.
The input voltage range is 80 ~ 264 VAC.
The maximum output current is 1.2A.
The power rating is 4 W.
The typical efficiency is 72%.
The operating temperature range is -40°C to 80°C (With Derating).
It is in a 7-DIP Module, 6 Leads package.
