| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage |

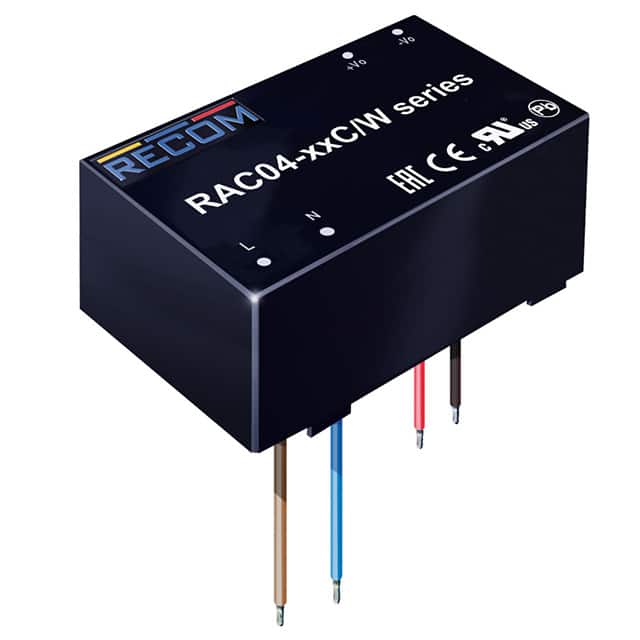

The RECOM Power RAC04-24SC/W is a compact AC/DC converter designed for various applications. It delivers a nominal output voltage of 24VDC with a maximum current of 167mA, providing a total power of 4W. The converter features a universal input voltage range of 80-264VAC and a typical efficiency of 79% at full load.
With a 3kVAC input-to-output isolation, this converter is suitable for ITE (Commercial) applications. It is designed for chassis mounting and operates within an ambient temperature range of -25°C to 85°C with derating. The unit is protected against short circuit and over current conditions, with automatic restart.
Key features include its compact size (37.8mm x 23.9mm x 16.4mm), low standby power consumption, and compliance with EN55032 Class B standards due to an integrated input filter. The RAC04-24SC/W is EN/UL60950-1 certified and comes with a 3-year warranty.
The nominal output voltage is 24VDC.
The maximum output current is 167mA.
The input voltage range is 80-264VAC or 115-370VDC.
The power rating is 4W.
The typical efficiency is 79% at full load.
The operating temperature range is -25°C to 85°C with derating.
It uses chassis mount.
