| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Insulation | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

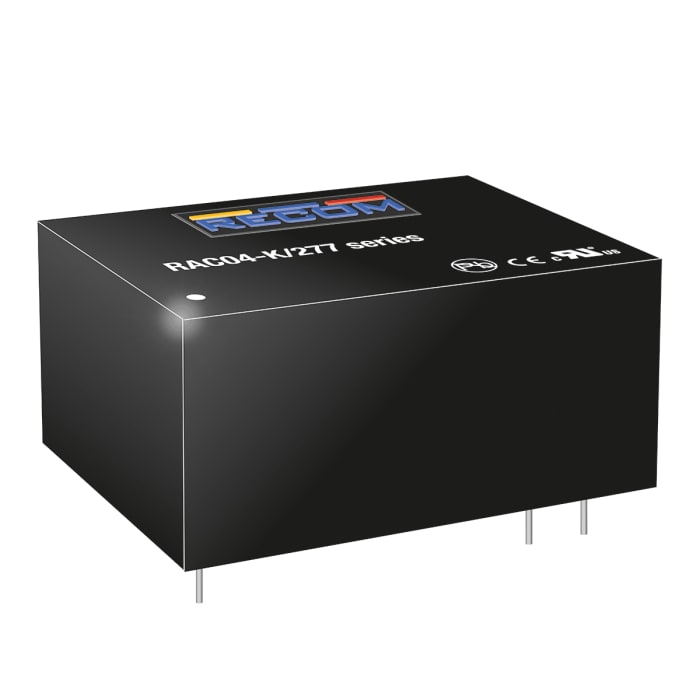

The Recom RAC04-15SK/277 is a 4W AC/DC converter designed for industrial and household environments. It provides a continuous output power of 4W with a peak capability of 6W, delivering a stable 15V DC at 267mA.
This switching power supply features a wide input voltage range of 80V AC to 305V AC, making it suitable for worldwide applications. It boasts an efficiency of 80% and operates across a broad temperature range from -40°C to +90°C, with derating at higher temperatures. The module has a low no-load power consumption of less than 150mW and offers 4kVac insulation.
Packaged in a 6-DIP module for through-hole mounting, the RAC04-15SK/277 is fully encapsulated and requires no external components. Its compact dimensions (36.7mm x 27.2mm x 17.4mm) make it suitable for space-constrained designs. Applications include automation, industry 4.0, IoT, and home automation systems.
Key specifications include a single output, 4W power rating, 267mA output current, and compliance with standards such as CB, CE, and cURus.
80VAC to 305VAC.
6-DIP Module with through-hole mounting.
-40°C to 90°C with derating.
15V DC.
267mA.
4W continuous, 6W peak.
80%.
