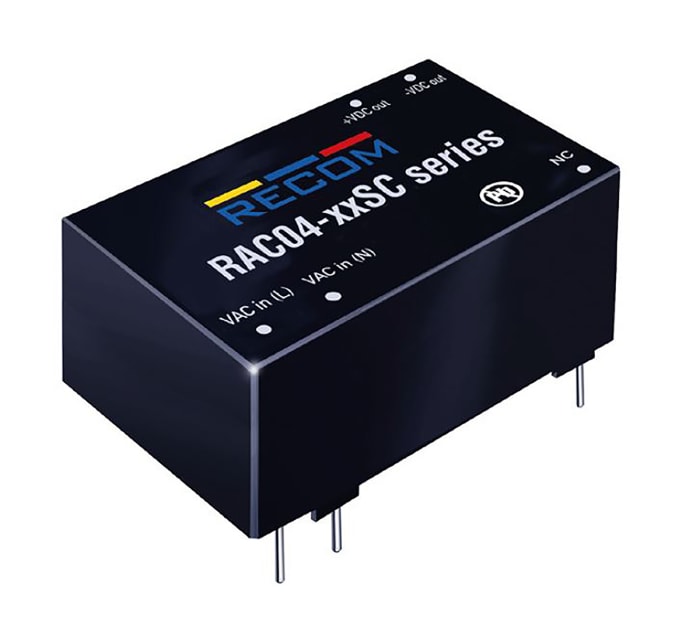

This Recom Power RAC04-15SC/277-E is an enclosed AC DC converter designed for board mounting. It delivers a 15V DC output at 267mA, providing a total power of 4W. The converter accepts a wide universal input voltage range from 80V AC to 305V AC, making it suitable for global applications.
Key electrical specifications include an efficiency of 79% and a single output. It operates within a wide temperature range of -40°C to 80°C. The unit is equipped with Short Circuit Protection (SCP).
Mechanically, the converter has dimensions of 36.7mm in length, 27.2mm in width, and 17.1mm in height, with a weight of 41g. It is designed for Through Hole mounting and comes in a 7-DIP Module, 6 Leads package.
Compliance is noted with standards including EN 550 Class B, EN 609501, and UL 609501. The RoHS status is RoHS3 Compliant, MSL is 1 Unlimited, and REACH status is REACH Unaffected. This converter is suitable for ITE (Commercial) applications.
The input voltage range is from 80VAC to 305VAC.
The package is a 7-DIP Module with 6 leads, and mounting is through hole.
The operating temperature range is from -40°C to 80°C.
The output current is 267mA at 15V.
Typical efficiency is 79%.
It complies with EN 550 Class B, EN 609501, and UL 609501.
Dimensions are 36.7mm x 27.2mm x 17.1mm, weight is 41g.
