| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| SVHC Present | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Weight | |
| Width |

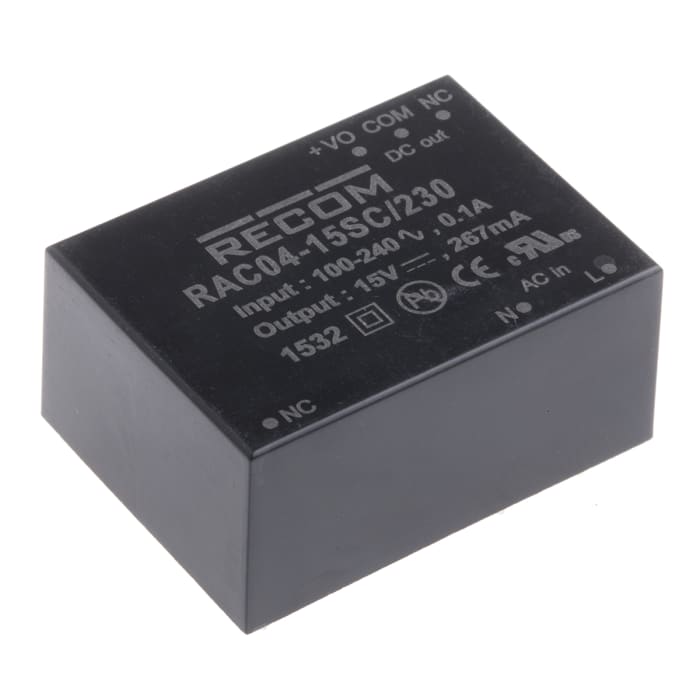

The Recom RAC04-15SC/230 is a 4W encapsulated AC to DC converter designed for PCB mounting. This unit provides a regulated 15V DC output at 267mA, with a universal input voltage range of 80-264VAC. It features an efficiency of 78% and includes short circuit protection (SCP).
With a compact size of 36.7mm x 27.2mm x 17.1mm and through-hole mounting, the RAC04-15SC/230 is suitable for various applications including ITE (Commercial) equipment. It operates within a temperature range of -40°C to 80°C with derating and meets standards such as EN 550 Class B and UL 60950-1.
The converter offers 3.75kVac isolation and has a low no-load power consumption of less than 100mW. It is part of the RAC04-C/230 series.
This power supply is ideal for board-level power solutions in instrumentation systems and standby applications.
The maximum output voltage is 15V dc.
The output current is 267mA.
The power rating is 4W.
The input voltage range is 80 to 264 VAC.
The operating temperature range is -40°C to 80°C with derating.
It is an encapsulated 7-DIP Module with 6 leads and is designed for through-hole mounting.
