| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

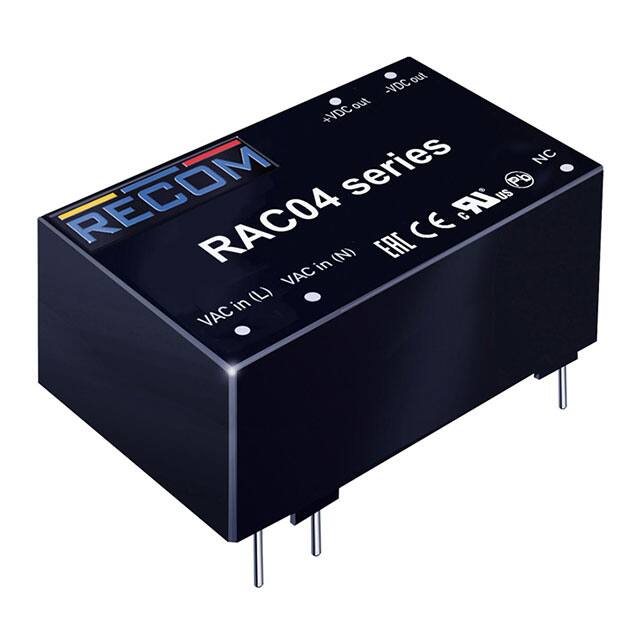

The RECOM Power RAC04-12SC is a compact AC/DC converter designed for various applications. It delivers a regulated 12VDC output at up to 333mA, providing a total power of 4W.
This converter operates with a universal input voltage range of 80-264VAC or 115-370VDC, making it suitable for global use. It boasts a typical efficiency of 74% at full load and features a standby consumption of 200mW. The operating temperature range is -25°C to 85°C with derating.
Designed for reliability, the RAC04-12SC includes protection against short circuits and overcurrent. It is certified to IEC/EN/UL60950-1 standards and complies with EN55032 class B for enhanced EMI performance. The module is housed in a 16-DIP package with through-hole mounting.
With its ultracompact design and integrated input filter, this power supply is ideal for energy-saving applications, home automation, and other similar systems requiring a stable and efficient power conversion solution.
The RAC04-12SC provides a nominal output voltage of 12 VDC.
The maximum output current for the RAC04-12SC is 333mA.
The RAC04-12SC has a power rating of 4 W.
The typical efficiency of the RAC04-12SC at full load is 74%.
The operating temperature range for the RAC04-12SC is -25°C to 85°C with derating.
The RAC04-12SC is supplied in a 16-DIP Module package with 5 leads.
The RAC04-12SC is designed for through-hole mounting.
