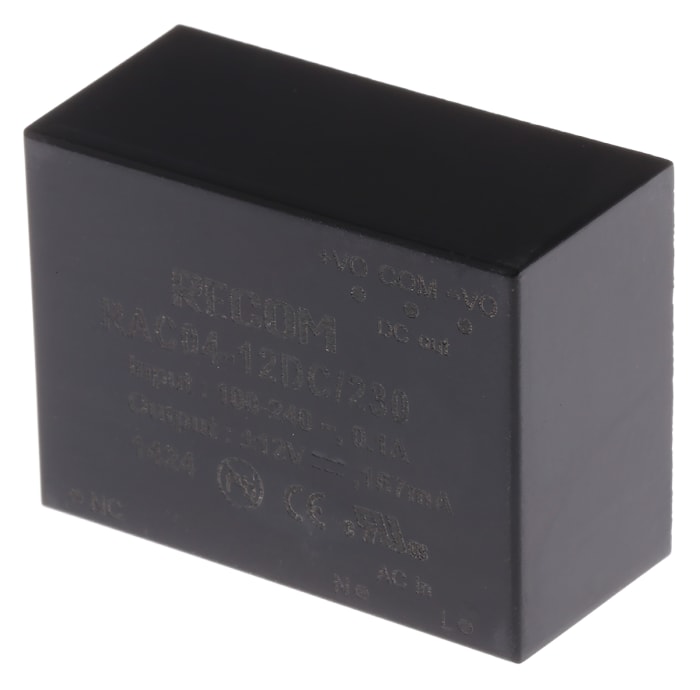

This Recom RAC04-12DC/230 is an enclosed AC/DC switching power supply designed for board-level applications. It provides dual outputs of +/-12V DC, each capable of delivering up to 166mA, for a total power output of 4W. The unit operates with a wide input voltage range from 80V AC to 264V AC, making it suitable for various commercial and industrial environments.
With an efficiency rating of 78%, this power supply minimizes energy wastage. It features Through Hole mounting for secure integration onto PCBs and has compact dimensions of 36.7mm in length, 27.2mm in width, and 17.1mm in height. The operating temperature range is -40°C to +65°C at maximum power, extendable to +80°C with derating.
Key specifications include a 4W power rating, dual 166mA outputs, and compliance with standards such as CE and cULus. The product is suitable for applications in ITE (Commercial) environments, automation systems, board-level power supplies, instrumentation systems, and standby applications.
80V AC to 264V AC.
+12V and -12V.
-40°C to 65°C at full load, with derating up to 80°C.
7-DIP Module, 6 leads, through-hole mounting.
Typical efficiency is 78%.
Yes, it features short circuit protection (SCP).
166mA per output.
