| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Applications | |
| Approval Agency | |
| Automotive Grade | |
| Country of Origin | |
| Current | |
| Efficiency | |
| Features | |
| Industrial Grade | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Weight |

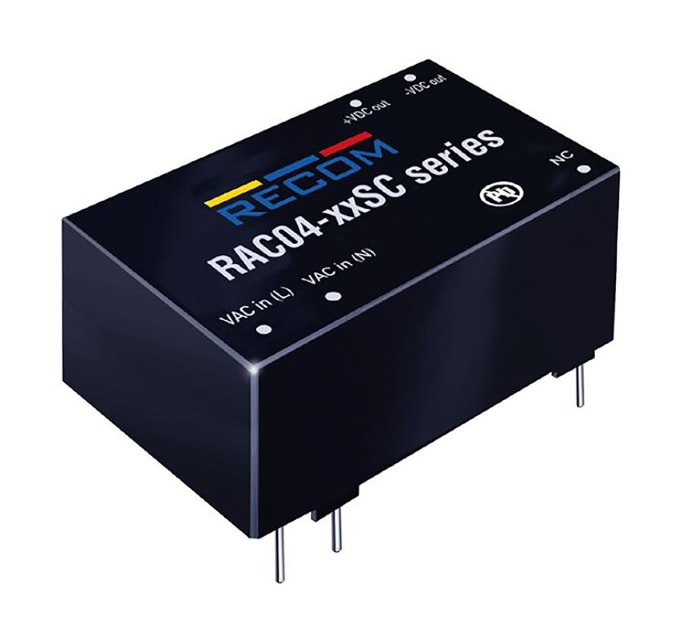

The Recom RAC04-05SC/277-E is a 4W encapsulated AC/DC converter designed for board mounting. It delivers a stable 5V DC output with a maximum current of 800mA. The converter operates with a universal input voltage range from 80V AC to 305V AC, making it suitable for worldwide applications.
Key electrical specifications include an efficiency of 75% and a low no-load power consumption of 50mW max. It offers 3.75kVAC isolation and includes Short Circuit Protection (SCP) and Over Voltage Protection (OVP).
This AC/DC converter is housed in a 7-DIP Module, 6 Leads package and utilizes Through Hole mounting. It operates within a wide temperature range of -40°C to 80°C. The dimensions are 36.7mm in length, 27.2mm in width, and 17.1mm in height, with a weight of 41g.
Compliance includes EN 550 Class B, EN 609501, and UL 609501 approvals. It is suitable for ITE (Commercial) applications.
The output voltage is 5V DC.
The maximum output current is 800mA.
The power rating is 4W.
The input voltage range is 80 to 305V AC.
The operating temperature range is -40°C to 80°C.
It is mounted using the Through Hole method.
