| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

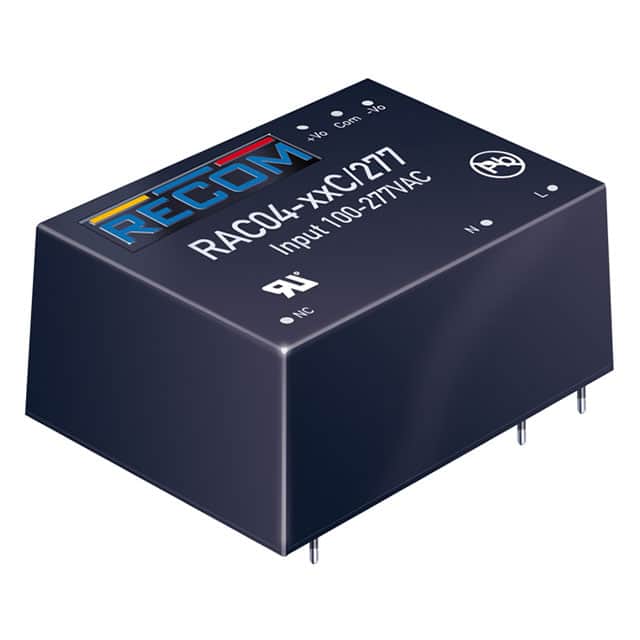

The Recom Power RAC04-05DC/277 is an enclosed AC/DC converter designed for board mount applications. It provides a regulated +/-5VDC output with a maximum power rating of 4W. The converter accepts a wide universal input voltage range of 80-305VAC and operates at a switching frequency of 67kHz.
Key electrical specifications include a typical efficiency of 76% and a maximum no-load power consumption of 50mW. It offers short circuit protection with auto-recovery and an isolation voltage of 3.75kVAC. The operating temperature range is -25°C to 80°C with derating.
This converter is suitable for ITE (Commercial) applications and meets EN55022 Class B standards. It is packaged in a 7-DIP module with through-hole mounting.
Additional features include a maximum input current of 98mA at 115VAC and an inrush current of 15A max. The hold-up time is 15ms minimum at 115VAC. Leakage current is rated at 0.25mA max. at 277VAC/50Hz, and isolation resistance is 100MΩ minimum.
The input voltage range is 80-305VAC.
The output voltage is +/-5VDC and the output current is +/-400mA.
The power rating is 4W.
The efficiency is 76%.
It includes Short Circuit Protection (SCP) with Auto Recovery.
The operating temperature range is -25°C to 80°C (With Derating).
The dimensions are 36.7mm in length, 27.2mm in width, and 17.1mm in height.
