| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Weight | |
| Width |

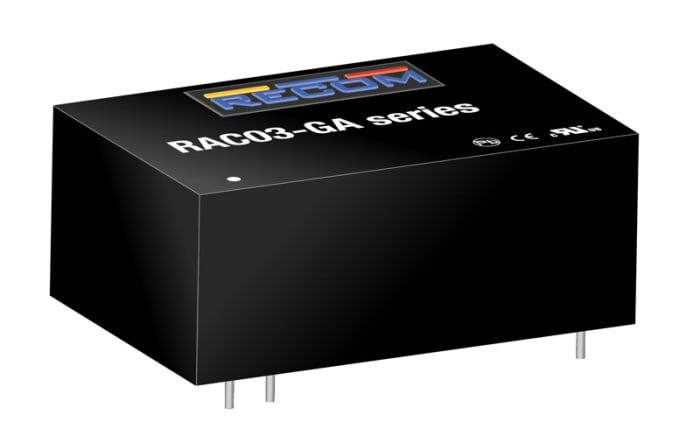

The Recom Power RAC03-3.3SGA is a compact, 3W AC DC converter designed for PCB mounting in industrial applications. It features a universal input voltage range of 85-305V ac and provides a regulated, isolated 3.3V dc output at 910mA.
Key electrical specifications include 70% efficiency and low standby power consumption of less than 75mW. The operating temperature range is -40°C to +85°C. The converter includes a built-in Class A / FCC Part 15 EMC filter and is certified to IEC/EN/UL60950-1 and EN60335 standards.
This AC DC converter is suitable for applications in household appliances and ITE (Commercial) equipment. It is mounted via a Through Hole process and comes in a 16-DIP Module package with 5 leads. The dimensions are 37.0mm x 24.0mm x 15.0mm.
85-305VAC.
3.3VDC.
910mA.
3W.
-40°C to +85°C.
16-DIP Module, 5 Leads, Through Hole.
70%.
