| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Standard Number | |
| Type | |
| Voltage | |
| Width |

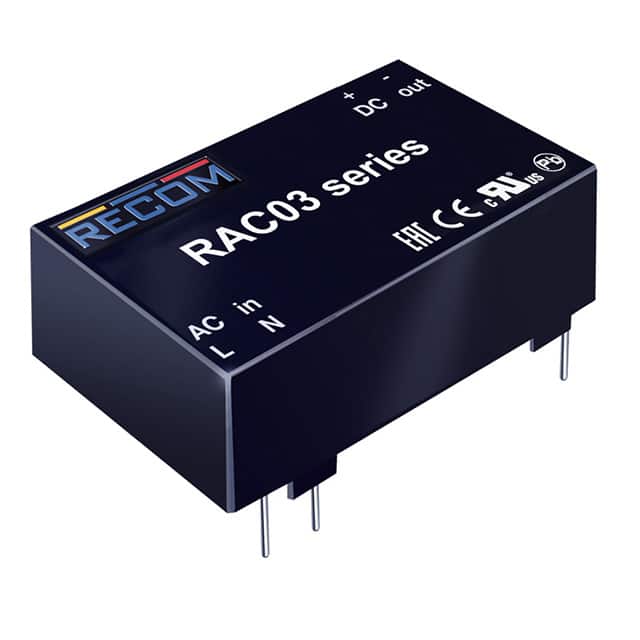

The RECOM Power RAC03-24SC is a compact, ultra-compact universal input AC/DC power module designed for PCB mounting. This 3 Watt converter provides a regulated 24VDC output and accepts a wide input voltage range of 80-264VAC.
Key electrical specifications include a typical efficiency of 78% at full load and low no-load power consumption. The module features low output ripple and noise, overload, and short-circuit protection. It operates within a temperature range of -25°C to 85°C with derating.
Designed for ITE (Commercial) applications, the RAC03-24SC is certified by CE, EN, and UL. It features a Class II power supply with 3kVAC isolation. The converter is housed in a 16-DIP Module package with 5 leads and is designed for Through Hole mounting.
This series is noted as 'NOT RECOMMENDED FOR NEW DESIGNS' with a last time buy date of August 12, 2022.
The RAC03-24SC has a nominal output voltage of 24 VDC.
The RAC03-24SC accepts a universal input voltage range of 80-264 VAC.
The RAC03-24SC has a power rating of 3 W.
The typical efficiency of the RAC03-24SC at full load is 78%.
The operating temperature range for the RAC03-24SC is -25°C to 85°C with derating.
The RAC03-24SC is designed for Through Hole mounting.
The RAC03-24SC is compliant with IEC/EN60335-1 and IEC/EN60950-1 standards.
