| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power | |
| Power (Watts) | |
| SVHC Present | |
| Type | |
| Voltage | |
| Weight | |
| Width |

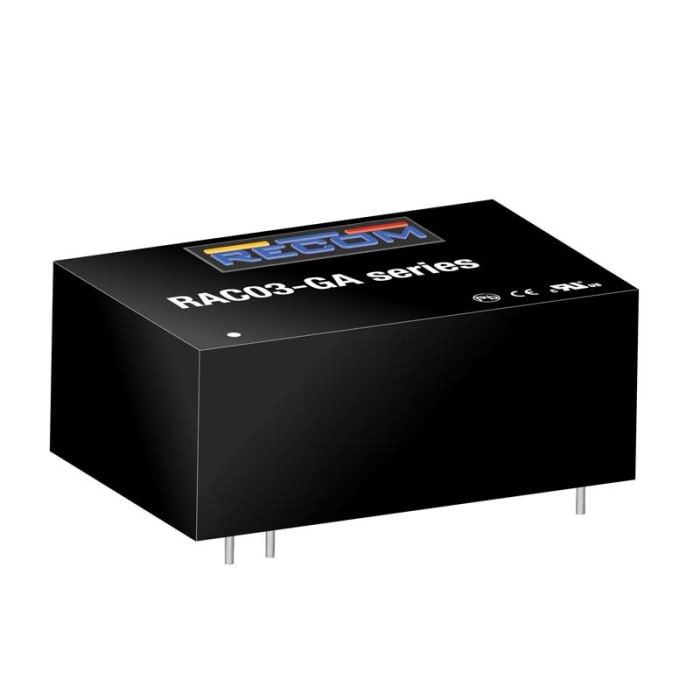

This Recom RAC03-12SGA is an enclosed AC/DC power supply designed for efficient power conversion. It delivers a stable 12V DC output with a maximum current of 250mA, suitable for low-power applications.
The unit features a wide input voltage range of 85 to 305 VAC, ensuring compatibility in various power environments. With an efficiency rating of 78%, it minimizes energy loss as heat, contributing to reliable operation. The compact dimensions of 37mm x 24mm x 15mm and through-hole mounting make it suitable for integration onto PCBs.
Designed for applications such as household appliances and ITE (Commercial) equipment, this power supply meets CE and cURus approval standards. It operates within a temperature range of -40°C to 85°C with derating, offering robustness in demanding conditions. The self-extinguishing housing enhances safety by stopping burning within 10 seconds.
The input voltage range is 85 to 305 VAC.
The output voltage is 12V DC at 250 mA.
It comes in a 16-DIP Module with 5 leads.
The operating temperature range is -40°C to +85°C (with derating).
The output power is 3W.
The efficiency is 78%.
The MTBF is 100,000 hours.
