| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Voltage | |
| Power (Watts) | |
| Standard Number | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

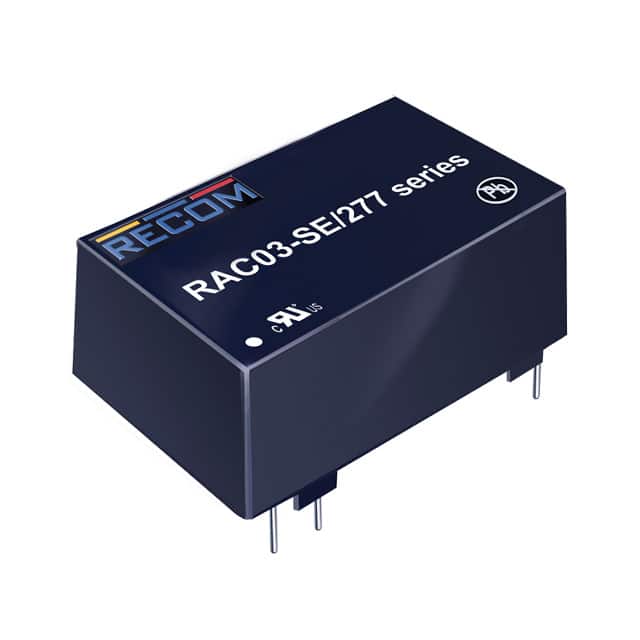

The Recom Power RAC03-05SE/277 is a compact AC/DC converter designed for various applications, including household appliances and ITE commercial use. It provides a regulated 5VDC output with a maximum current of 600mA, delivering up to 3W of power.
This converter operates with a wide input voltage range of 85-305VAC and a frequency range of 47-63Hz. It boasts a high efficiency of 76% and a low no-load power consumption of 30mW, making it suitable for energy-saving designs. The unit also features a hold-up time of 15ms and an internal operating frequency of 55kHz.
Designed for reliability, the RAC03-05SE/277 has an operating temperature range of -40°C to 85°C with derating. Its mechanical dimensions are 38.1mm in length, 24.3mm in width, and 17.4mm in height. The package is a 16-DIP Module with 5 leads, designed for through-hole mounting.
Compliance includes standards such as 60335-1 and 60950-1. The converter also offers features like universal input and protection against short circuits.
The input voltage range is 85-305 VAC.
The output voltage is 5 VDC.
The maximum output current is 600 mA.
The power rating is 3 W.
The efficiency is 76%.
The no-load power consumption is 30 mW.
The operating temperature range is -40°C to 85°C (With Derating).
