| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Output Power | |
| Output Voltage | |
| Type | |
| Voltage | |
| Width |

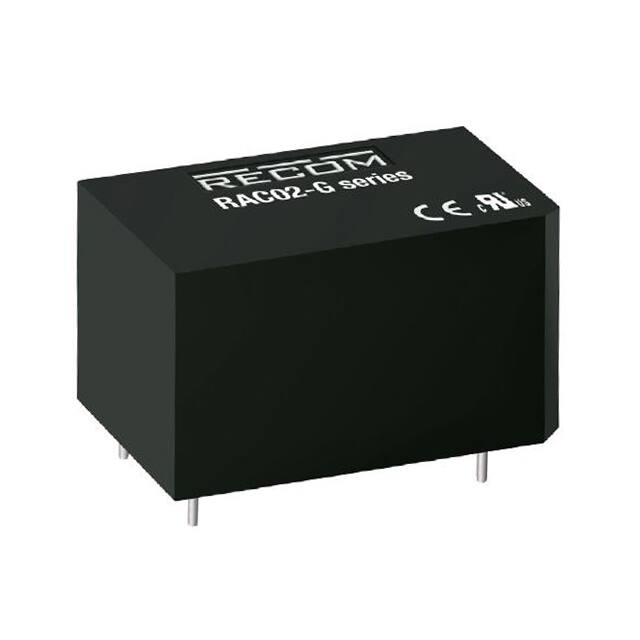

The RECOM Power RAC02-3.3SGB is a compact, board-level AC/DC power supply ideal for industrial applications. It offers a universal input voltage range of 85-264VAC and provides a regulated, isolated 3.3VDC output at up to 500mA, delivering 2W of power.
This converter features a built-in Class B / FCC Part 15 EMC filter, simplifying compliance. It operates within a wide temperature range of -25°C to +80°C with derating and has a low no-load power consumption of less than 250mW. The RAC02-3.3SGB is certified to EN60950 and EN62368 safety standards.
Designed for Through Hole mounting, this converter comes in a 4-DIP Module package. Its features include continuous short-circuit and over-current protection, making it suitable for ITE (Commercial) applications. The unit is RoHS3 compliant and has an MSL rating of 1.
85-264 VAC.
3.3 VDC at 500 mA.
4-DIP Module.
-25°C to +80°C.
63% typical.
Less than 250 mW.
Through Hole.
