| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2 pcs
|
2 pcs | On Request | 1 | On Request | On Request | 1622 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Current | |
| Power (Watts) | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Type | |
| Voltage | |
| Width |

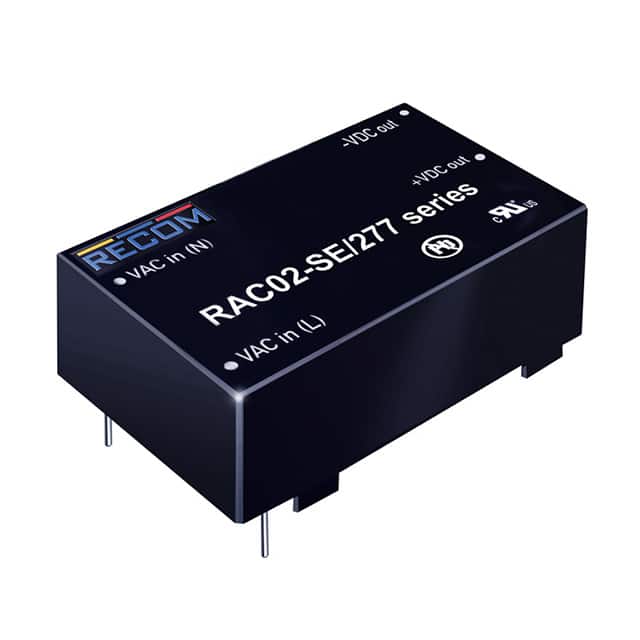

The Recom Power RAC02-3.3SE/277 is a compact AC/DC converter designed for various applications requiring a stable 3.3V DC output. It delivers up to 2W of power and accepts a wide universal input voltage range of 85-305 VAC, making it suitable for global use.
Key electrical specifications include a 67% efficiency at full load and a 35mW maximum no-load power consumption, contributing to energy efficiency. The converter offers 3kVAC isolation between input and output and includes Short Circuit Protection (SCP) and Over Voltage Protection (OVP) for enhanced reliability. Its operating temperature range is -40°C to 85°C.
Packaged in a 4-DIP module with a through-hole mounting type, this enclosed converter has dimensions of 33.7mm in length, 24.4mm in width, and 17.8mm in height. The series complies with EN55032 Class B for EMI performance and is certified to EN/UL60950-1 standards.
This power supply is well-suited for energy-saving sleep mode and standby applications, as well as home automation and similar systems due to its compact size and low standby power.
The output voltage is 3.3 VDC.
The input voltage range is 85-305 VAC.
The power rating is 2 W.
The efficiency is 67%.
It has SCP (Short Circuit Protection) and OVP (Over Voltage Protection).
The operating temperature range is -40°C to 85°C.
The isolation is 3000 VAC for 1 minute.
