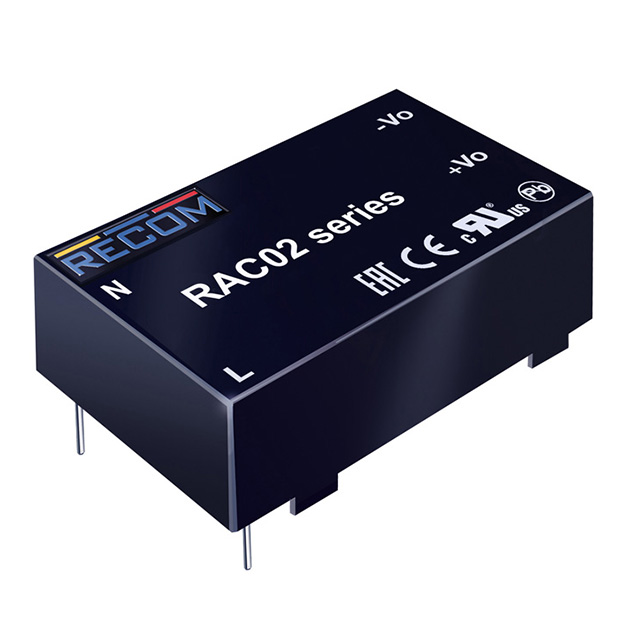

The RECOM Power RAC02-15SC is an enclosed AC/DC power module designed for PCB mounting. It operates with a universal input voltage range of 80-264 VAC and provides a regulated 15VDC output at a maximum current of 133mA, delivering a total power of 2W.
Key electrical specifications include a typical efficiency of 74% and a low no-load power consumption of 80mW at 230VAC. The converter offers ±2% line regulation and ±6% load regulation, ensuring stable output. It features short-circuit protection (SCP) and provides 3kVAC isolation.
This AC/DC converter is designed for Through Hole mounting and comes in a 4-DIP Module package. It operates within an ambient temperature range of -25°C to 85°C with derating. The RAC02-15SC is certified by CE, EN, and UL, making it suitable for ITE (Commercial) applications.
Note: This part is marked as obsolete and not recommended for new designs.
The RAC02-15SC provides a nominal output voltage of 15VDC.
The maximum output current for the RAC02-15SC is 133mA.
The RAC02-15SC has a power rating of 2W.
The typical efficiency of the RAC02-15SC is 74%.
The operating temperature range for the RAC02-15SC is -25°C to 85°C with derating.
The RAC02-15SC uses a 4-DIP Module package.
The RAC02-15SC is mounted using the Through Hole method.
