| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Isolation | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Package / Case | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

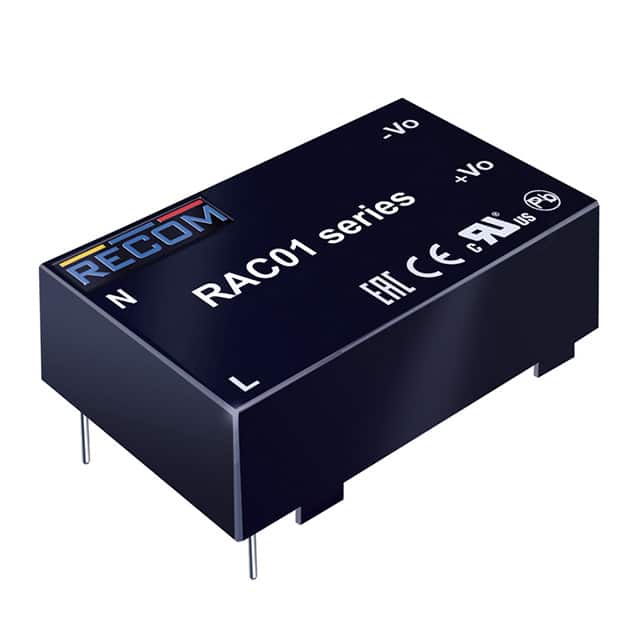

The Recom Power RAC01-12SC is an ultra-compact, universal input AC/DC power module designed for PCB mounting. This 1W converter provides a regulated 12VDC output with a current rating of 83mA, operating from an input voltage range of 80-264VAC.
Key electrical specifications include a typical efficiency of 72% and low no-load power consumption. The module is designed for reliable operation within an ambient temperature range of -25°C to 85°C with derating. It offers features such as short-circuit protection and 3kVAC isolation.
This AC/DC converter is housed in a 4-DIP module package and utilizes through-hole mounting. Its compact dimensions (33.7mm x 22.2mm x 18.0mm) make it suitable for space-constrained applications. The RAC01-12SC series is certified by CE, EN, and UL, indicating compliance with relevant safety standards.
The converter accepts a universal AC input voltage range of 80 to 264 VAC.
It provides a nominal 12 VDC output with a maximum current of 83 mA.
Yes, it offers 3 kVAC of isolation rated for Class II equipment.
The unit operates within a temperature range of -25°C to 85°C with derating.
It comes in a 4-DIP module package designed for through-hole mounting.
No-load power consumption is typically 30 mW at 115 VAC and 80 mW at 230 VAC.
