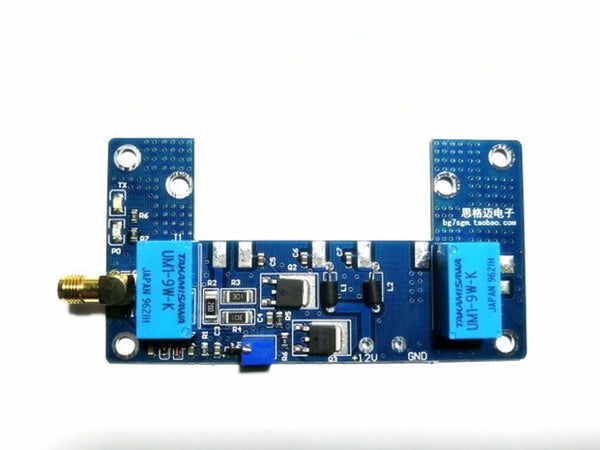

The RA60H4047M by Mitsubishi Electronic is a Radio Power Amplifier Board designed for use with RA30H4047M and RA60H4047M modules. This upgraded version supports products from Mitsubishi and Toshiba, featuring an increased input SMA seat, a power indicator light, and transmit lights.
Key technical parameters include an input power range of 1-5W and an output power range of 10-60W, depending on the specific module used. The board operates with an input voltage of 10-13.8VDC and covers frequency ranges of 130-170MHz and 400-470MHz, also dependent on the module.
The dimensions of the board are 92 x 64 x 1.6 mm. A note indicates a plug-resistor that may need to be removed or soldered depending on the amplifier module series (M or S series requires removal of R6, RA series requires soldering).
This component is suitable for applications requiring RF power amplification within the specified frequency bands and power levels, such as intercom and ham radio systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.20 | $0.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power range is 1-5W.
The output power is 10-60W, depending on the module.
The input voltage is DC 10-13.8V.
It supports 130-170MHz and 400-470MHz, depending on the module.
The dimensions are 92 x 64 x 1.6 mm.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
